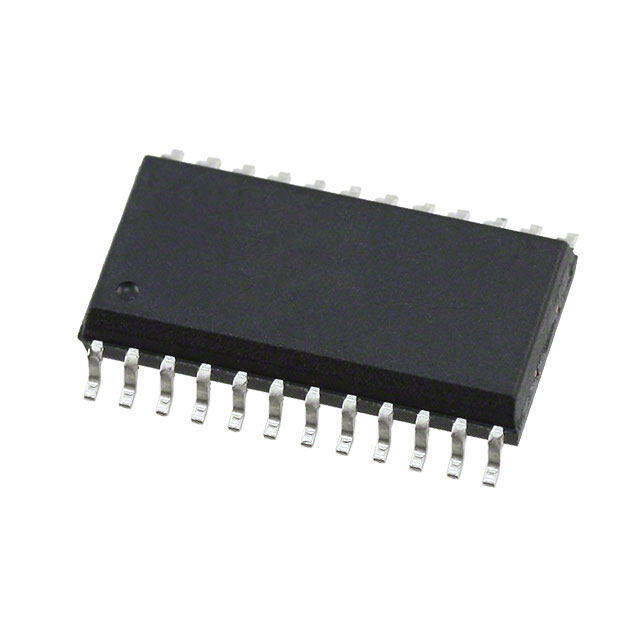

MTS62C19A-HS105
RoHS
RoHS compliant
RoHS compliantPackage 24-BFSOP (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
CMOS Tube MTS62C19A ALSO REQUIRED LOAD SUPPLY VOLTAGE OF 10V TO 40V motor driver 30V 550mA 7.595mm -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $11.06
Unit Price: USD $11.0599
≥1 USD $11.0599
≥10 USD $9.07535
≥100 USD $8.7913
≥500 USD $8.5082
≥1000 USD $8.22415
Inventory: 1394
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 7.595mm
Length 15.85mm
Height 2.642mm
Technical
Step Resolution 1, 1/2, 1/4, 1/8
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Voltage - Load 10V~40V
Max Collector Current 750mA
Supply Current-Max (Isup) 1mA
Current - Output 550mA
Output Configuration Half Bridge (4)
Nominal Supply Current 800μA
Analog IC - Other Type STEPPER MOTOR CONTROLLER
Interface On/Off
Number of Channels 2
Supply Voltage-Min (Vsup) 4.5V
Power Supplies 5V
Supply Voltage-Max (Vsup) 5.5V
Operating Supply Voltage 30V
Output Voltage 40V
Function Driver - Fully Integrated, Control and Power Stage
Base Part Number MTS62C19A
Time@Peak Reflow Temperature-Max (s) 40
Supply Voltage 5V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 4.5V~5.5V
Technology CMOS
Subcategory Motion Control Electronics
Additional Feature ALSO REQUIRED LOAD SUPPLY VOLTAGE OF 10V TO 40V
Applications Automotive
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Published 2007
Packaging Tube
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 24
Surface Mount YES
Package / Case 24-BFSOP (0.295, 7.50mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
