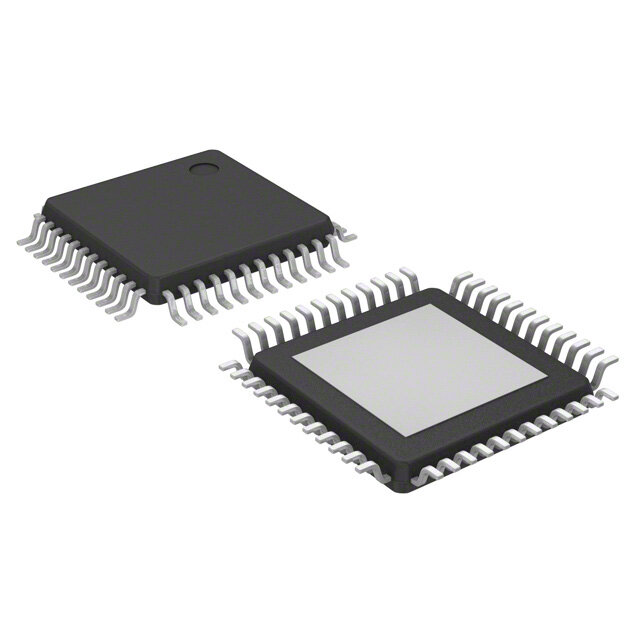

TLE7183QUXUMA4
RoHS
RoHS compliant
RoHS compliantPackage 48-TQFP Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
Power MOSFET Tape & Reel (TR) Automotive Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) motor driver 14V 0.02A 7mm -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $4.88
Unit Price: USD $4.877424
≥1 USD $4.877424
≥200 USD $1.88795
≥500 USD $1.820992
≥1000 USD $1.78817
Inventory: 1189
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 1.2mm
Technical
Motor Type - AC, DC Brushless DC (BLDC)
Output Current-Max 0.02A
Output Configuration Pre-Driver - Half Bridge (3)
Analog IC - Other Type AC MOTOR CONTROLLER
Interface Parallel
Supply Voltage-Min (Vsup) 5.5V
Supply Voltage-Max (Vsup) 20V
Function Controller - Commutation, Direction Management
JESD-30 Code S-PQFP-G48
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 14V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 5.5V~20V
Technology Power MOSFET
HTS Code 8542.39.00.01
Applications Automotive
Terminal Finish Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
ECCN Code EAR99
Number of Terminations 48
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Pbfree Code yes
JESD-609 Code e4
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Surface Mount YES
Package / Case 48-TQFP Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
