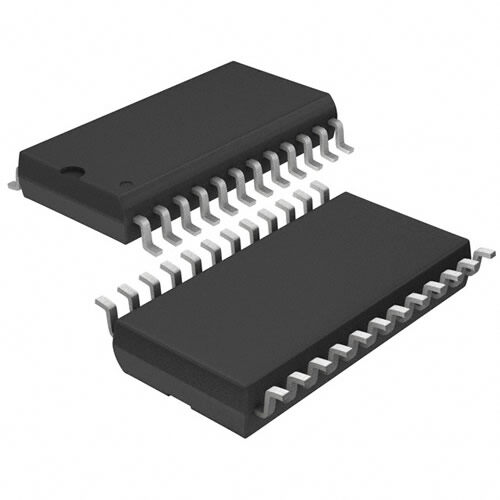

TCA3727G
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
BIPOLAR 8542.39.00.01 STEPPER MOTOR CONTROLLER AUTOMOTIVE motor controller 40V 1A 7.6mm 125C
PDF
/
Buying Options
Total Price: USD $18.79
Unit Price: USD $18.79385
≥1 USD $18.79385
≥10 USD $15.4204
≥100 USD $14.93875
≥500 USD $14.4571
≥1000 USD $13.97545
Inventory: 54
Minimum: 1
-
+
Technical Details
Technical
Temperature Grade AUTOMOTIVE
Supply Voltage-Min (Vsup) 4.5V
Analog IC - Other Type STEPPER MOTOR CONTROLLER
Output Current-Max 1A
Power Supplies 40V
Supply Voltage-Max (Vsup) 6.5V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 125°C
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G24
Pin Count 24
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 1.27mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Motion Control Electronics
HTS Code 8542.39.00.01
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3
Pbfree Code icon-pbfree yes
Dimensions
Height Seated (Max) 2.65mm
Length 15.6mm
Width 7.6mm
Compliance
RoHS Status RoHS Compliant
Physical
Number of Terminals 24
Surface Mount YES
