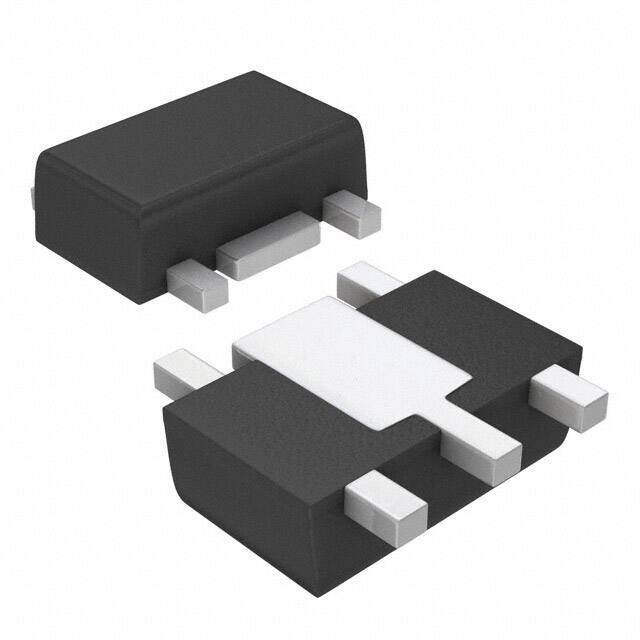

AH285-PL-B image
Favorite
AH285-PL-B image
Favorite
RoHS
RoHS RoHS compliant
Package SIP
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description Bulk INPUT VOLTAGE LIMIT-MAX=24 Matte Tin (Sn) 2016 motor driver 12V 500mA 1.55mm 150C
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.232
≥1 USD $1.232
≥10 USD $1.10088
≥100 USD $1.045088
≥500 USD $0.858616
≥1000 USD $0.802595
≥3000 USD $0.709262
Inventory: 957
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 1.55mm
Length 5.22mm

Technical

Logic Function AND
Output Current 500mA
Analog IC - Other Type BRUSHLESS DC MOTOR CONTROLLER
Interface On/Off
Supply Voltage-Min (Vsup) 3.8V
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 20V
Pin Count 5
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.95mm
Supply Voltage 12V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position SINGLE
HTS Code 8542.39.00.01
Additional Feature INPUT VOLTAGE LIMIT-MAX=24
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Published 2016
Packaging Bulk

Physical

Package / Case SIP
Mount Surface Mount, Through Hole
