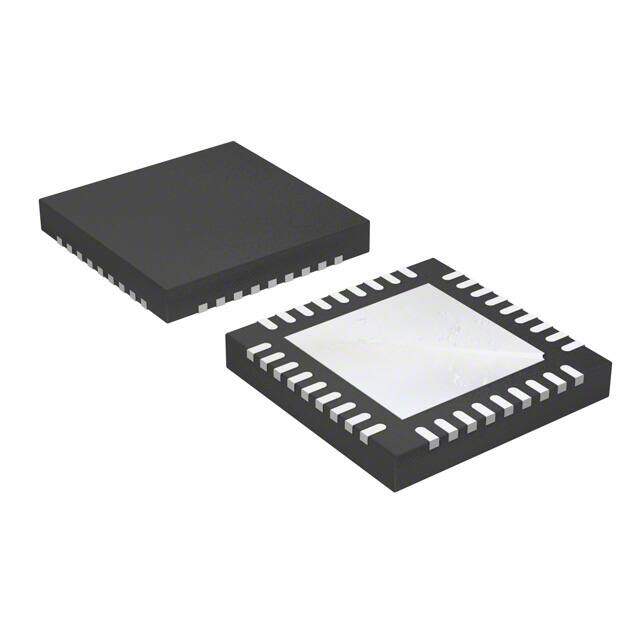

A5995GEVSR-T
RoHS
RoHS compliant
RoHS compliantPackage 36-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
DMOS Tape & Reel (TR) General Purpose 2013 motor driver 40V 3.2A 6mm -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $2.73
Unit Price: USD $2.728
≥1 USD $2.728
≥10 USD $2.45344
≥100 USD $2.31968
≥500 USD $2.010448
≥1000 USD $1.907347
≥3000 USD $1.711477
Inventory: 1309
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 6mm
Height Seated (Max) 1mm
Technical
Motor Type - AC, DC Brushed DC
Voltage - Load 8V~40V
Current - Output 3.2A
Output Configuration Half Bridge (4)
Analog IC - Other Type STEPPER MOTOR CONTROLLER
Interface Parallel
Supply Voltage-Min (Vsup) 8V
Supply Voltage-Max (Vsup) 40V
Function Driver - Fully Integrated, Control and Power Stage
JESD-30 Code S-XQCC-N36
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 8V~40V
Technology DMOS
HTS Code 8542.39.00.01
Applications General Purpose
ECCN Code EAR99
Number of Terminations 36
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Surface Mount YES
Package / Case 36-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
