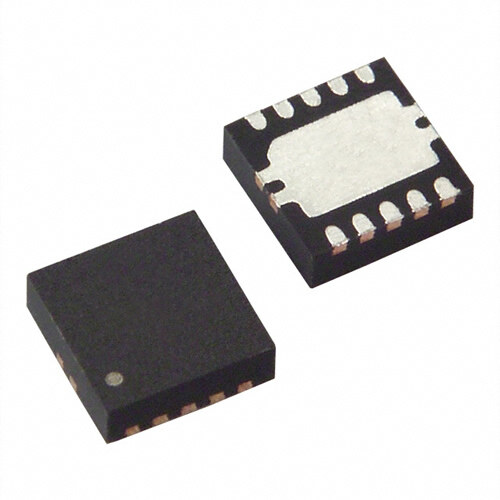

TPS61050DRCRG4
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
IC LED DRIVER PHOTO FLASH 10-SON
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.90345
≥1 USD $0.90345
≥10 USD $0.741
≥100 USD $0.7182
≥500 USD $0.6954
≥1000 USD $0.67165
Inventory: 1686
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 3mm
Length 3mm
Technical
Multiplexed Display Capability NO
Number of Segments 1
fmax-Min 0.4 MHz
Interface IC Type LED DISPLAY DRIVER
Max Input Voltage 6V
Min Input Voltage 2.5V
Topology Boost
Voltage - Output 5.5V
Quiescent Current 8.5mA
Current - Output 1.2A
Power Dissipation-Max 2.4W
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 6V
Operating Supply Voltage 6V
Max Output Current 1.2A
Pin Count 10
Frequency 2.2MHz
Terminal Pitch 0.5mm
Supply Voltage 3.6V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Subcategory Display Drivers
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Physical
Weight 26.109911mg
Number of Pins 10
Surface Mount YES
