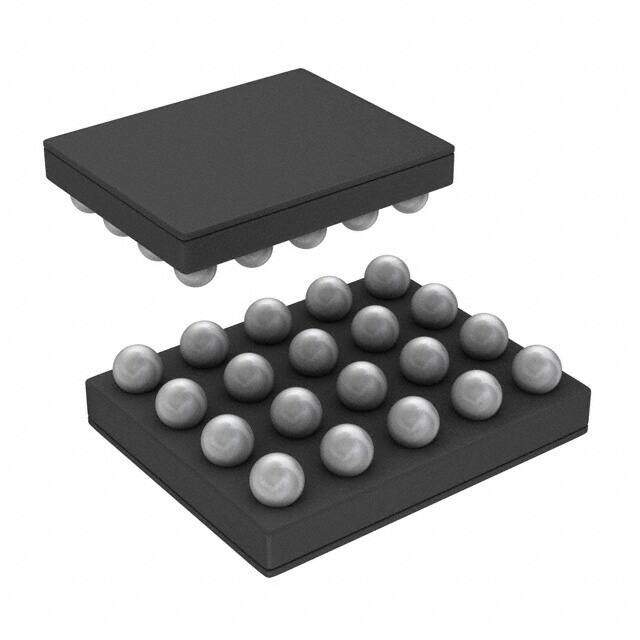

LP8556TMX-E04/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 20-WFBGA, DSBGA
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) LP8556 Step-Up (Boost) PWM led driver 0m 20mA 20V 1.25MHz
PDF
/
Inventory: 1162
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 420μm
Width 0m
Length 0m
Height 675μm
Technical
Data Input Mode SERIAL
Multiplexed Display Capability NO
Voltage - Supply (Min) 2.7V
Switching Frequency 1.25MHz
Number of Segments 48
Dimming PWM
Internal Switch(s) Yes
Current - Output / Channel 20mA
Input Characteristics STANDARD
Topology Step-Up (Boost)
Voltage - Output 16V~25V
Quiescent Current 2.2mA
Max Supply Current 3.65mA
Power Supplies 12V
Operating Supply Voltage 20V
Qualification Status Not Qualified
Number of Outputs 6
Base Part Number LP8556
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 312kHz 625kHz 1250kHz
Terminal Pitch 0.4mm
Supply Voltage 1.8V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Display Drivers
HTS Code 8542.39.00.01
Applications Backlight
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type DC DC Regulator
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -30°C~85°C TA
Physical
Number of Pins 20
Surface Mount YES
Package / Case 20-WFBGA, DSBGA
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 26 Weeks
Alternative Model
