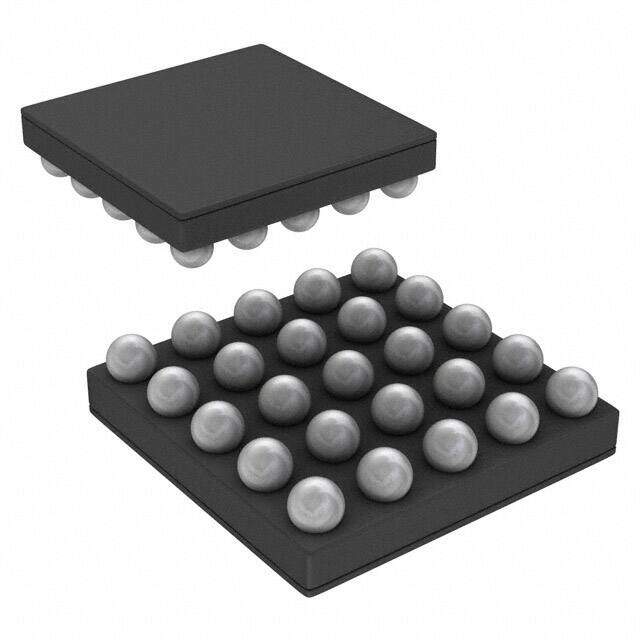

LP8552TLE/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 25-WFBGA
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) LP8552 Step-Up (Boost) PWM led driver 3mm 3mA 22V 400kHz
PDF
/
Buying Options
Total Price: USD $2.61
Unit Price: USD $2.6136
≥1 USD $2.6136
≥10 USD $2.35048
≥100 USD $2.2176
≥500 USD $1.88936
Inventory: 472
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 25-WFBGA
Number of Pins 25
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
ECCN Code EAR99
Type DC DC Regulator
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications Backlight
HTS Code 8542.39.00.01
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 12V
Terminal Pitch 0.5mm
Frequency 400kHz
Base Part Number LP8552
Number of Outputs 6
Max Supply Voltage 22V
Min Supply Voltage 5.5V
Output Current 450mA
Max Supply Current 3mA
Voltage - Output 40V
Topology Step-Up (Boost)
Min Input Voltage 5.5V
Max Input Voltage 22V
Output Characteristics STANDARD
Input Characteristics STANDARD
Internal Switch(s) Yes
fmax-Min 0.4 MHz
Dimming PWM
Number of Segments 12
Voltage - Supply (Min) 2.7V
Multiplexed Display Capability NO
Nominal Input Voltage (DC) 12V
Dimensions
Height 675μm
Length 3mm
Width 2.8mm
Thickness 675μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
