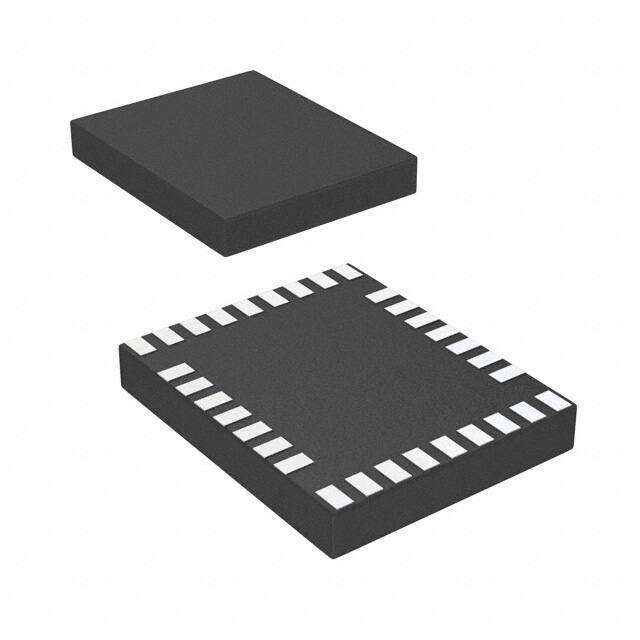

LP3950SLX/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 32-WFLGA
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
ROHS3Compliant NO LEAD QUAD Not Qualified led driver -40C~85C TA 2MHz 2.8V 50mA
PDF
/
Inventory: 1737
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 32-WFLGA
Number of Pins 32
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 32
Type DC DC Regulator
Applications Backlight, Camera Flash
Subcategory Display Drivers
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 2.8V
Terminal Pitch 0.5mm
Frequency 2MHz
Base Part Number LP3950
Number of Outputs 6
Qualification Status Not Qualified
Power Supplies 2.8V
Voltage - Output 5V
Topology Step-Up (Boost)
Current - Output / Channel 50mA
Internal Switch(s) Yes
Dimming PWM
Voltage - Supply (Max) 2.9V
Voltage - Supply (Min) 2.7V
Compliance
RoHS Status ROHS3 Compliant
