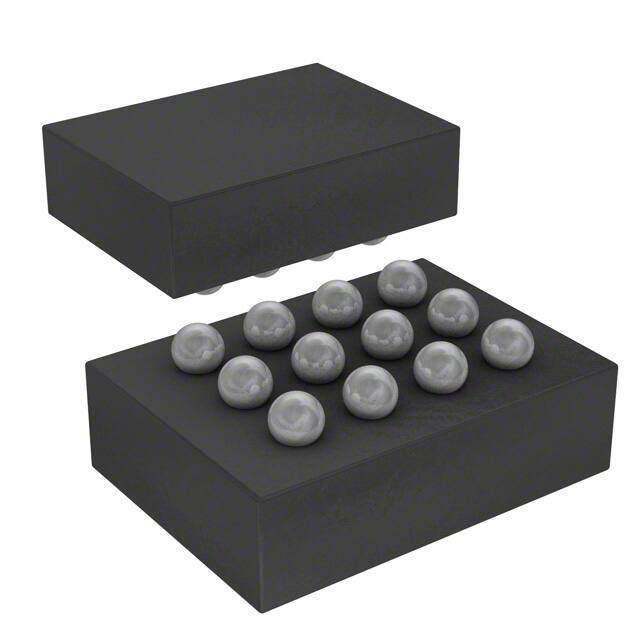

STLED25JR
RoHS
RoHS compliant
RoHS compliantPackage 12-UFBGA, FCBGA
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) STLED25 Step-Up (Boost) PWM led driver 0.4mm 125mA 5.5V 2.5MHz
PDF
/
Buying Options
Total Price: USD $3.37
Unit Price: USD $3.3704
≥1 USD $3.3704
≥10 USD $3.02456
≥100 USD $2.859648
≥500 USD $2.478432
≥1000 USD $2.351325
≥3000 USD $2.109835
Inventory: 1531
Minimum: 1
-
+
Technical Details
Technical
Terminal Pitch 0.4mm
Supply Voltage 3.7V
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Display Drivers
Applications Backlight
Type DC DC Regulator
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -30°C~85°C TA
Voltage - Supply (Min) 2.3V
Number of Segments 10
Dimming PWM
Internal Switch(s) Yes
Output Current per Channel 125mA
Topology Step-Up (Boost)
Voltage - Output 8.8V
Min Supply Voltage 2.3V
Max Supply Voltage 5.5V
Power Supplies 3.7V
Number of Outputs 5
Pin Count 12
Base Part Number STLED25
Frequency 2.5MHz
Physical
Number of Pins 12
Package / Case 12-UFBGA, FCBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 1.388mm
