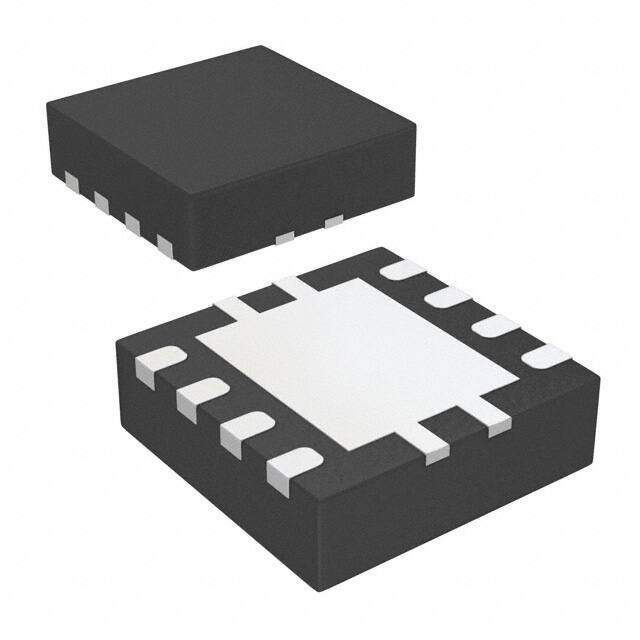

STLD40DPUR
RoHS
RoHS compliant
RoHS compliantPackage 8-VDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) STLD40 Step-Up (Boost) IT CAN ALSO OPERATE WITH PULSE FREQUENCY MODULATION led driver 3mm 1.2mA 3.6V -40C~85C TA
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.496
≥1 USD $1.496
≥10 USD $1.34376
≥100 USD $1.267552
≥500 USD $1.079848
≥1000 USD $1.013936
≥3000 USD $0.887198
Inventory: 1551
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-VDFN Exposed Pad
Number of Pins 8
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type DC DC Regulator
Terminal Finish Matte Tin (Sn) - annealed
Applications Backlight
Additional Feature IT CAN ALSO OPERATE WITH PULSE FREQUENCY MODULATION
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Base Part Number STLD40
Pin Count 8
Number of Outputs 1
Efficiency 80 %
Output Voltage 38V
Output Type Adjustable
Operating Supply Voltage 5.5V
Input Voltage-Nom 3.6V
Output Current 20mA
Max Supply Current 1.2mA
Voltage - Output 37V
Topology Step-Up (Boost)
Min Input Voltage 3V
Max Input Voltage 5.5V
Output Current per Channel 20mA
Control Technique PULSE WIDTH MODULATION
Internal Switch(s) Yes
Dimming PWM
Dimensions
Length 3mm
Width 3mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
