STCF04TBR
RoHS
RoHS compliant

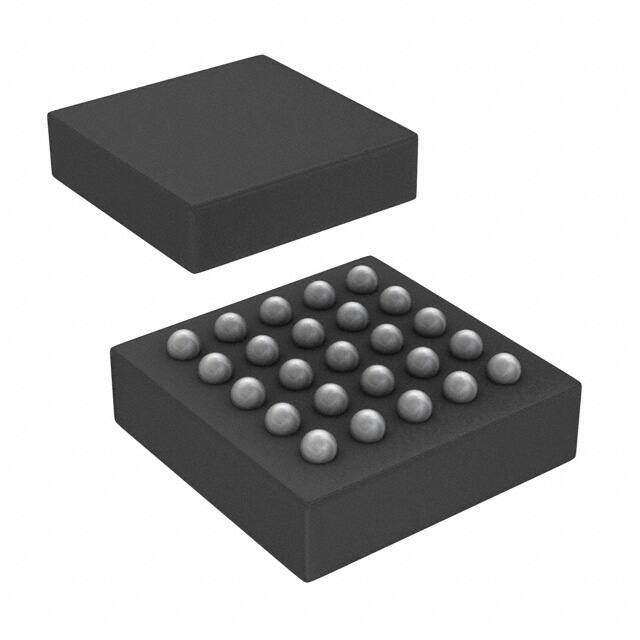

RoHS compliantPackage 25-TFBGA
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) STCF04 Step-Down (Buck) Step-Up (Boost) SuperCap? led driver 0.5mm 1.5A Switch 5.5V 1.8MHz
PDF
/
Buying Options
Total Price: USD $2.36
Unit Price: USD $2.364208
≥1 USD $2.364208
Inventory: 3480
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 25-TFBGA
Number of Pins 25
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series SuperCap?
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 25
ECCN Code EAR99
Type DC DC Regulator
Applications Camera Flash
Subcategory Display Drivers
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3.6V
Terminal Pitch 0.5mm
Frequency 1.8MHz
Base Part Number STCF04
Number of Outputs 1
Operating Supply Voltage 5.5V
Power Supplies 3.6V
Voltage - Output 4.5V~5.5V
Topology Step-Down (Buck), Step-Up (Boost)
Output Current per Channel 1.5A
Current - Output / Channel 1.5A Switch
Internal Switch(s) Yes
Voltage - Supply (Min) 2.5V
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
