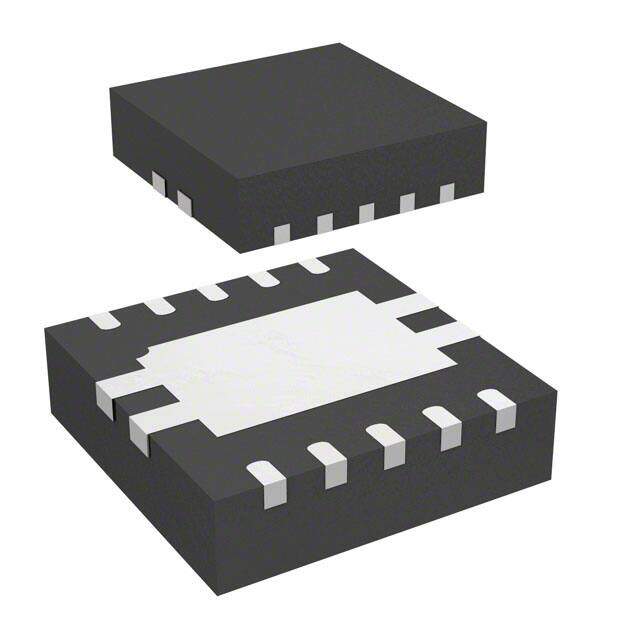

STCF01PMR
RoHS
RoHS compliant
RoHS compliantPackage 10-VFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) STCF01 Step-Up (Boost) Surface Mount led driver 3mm 300mA Flash 5.5V 1.5MHz
PDF
/
Inventory: 1394
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 10-VFDFN Exposed Pad
Number of Pins 10
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type DC DC Regulator
Terminal Finish Matte Tin (Sn) - annealed
Applications Camera Flash
Subcategory Switching Regulator or Controllers
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Frequency 1.5MHz
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number STCF01
Pin Count 10
Number of Outputs 1
Qualification Status Not Qualified
Input Voltage-Nom 3.6V
Voltage - Output 17V
Input Voltage (Min) 2.6V
Topology Step-Up (Boost)
Control Mode VOLTAGE-MODE
Input Voltage (Max) 5.5V
Control Technique PULSE WIDTH MODULATION
Current - Output / Channel 300mA Flash
Internal Switch(s) Yes
Voltage - Supply (Max) 5.5V
Voltage - Supply (Min) 2.6V
