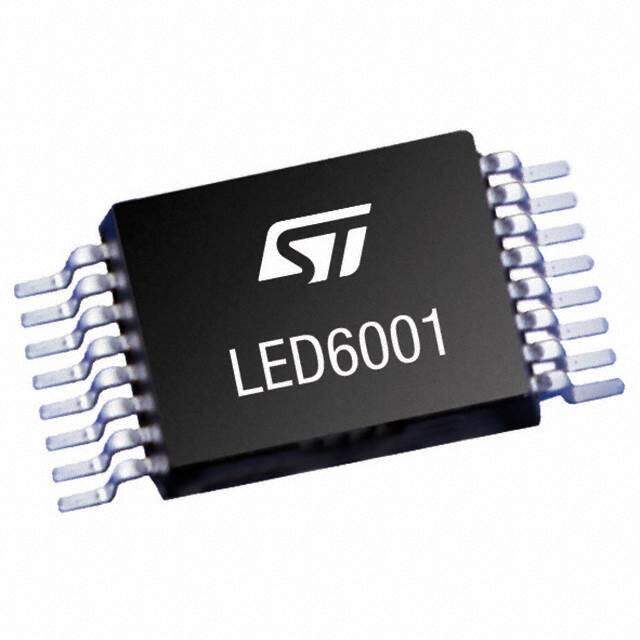

ALED6001
RoHS
RoHS compliant
RoHS compliantPackage 16-TSSOP (0.173, 4.40mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tube ALED60 SEPIC Step-Down (Buck) Step-Up (Boost) Analog PWM led driver 5mm 7mA 36V 1MHz
PDF
/
Buying Options
Total Price: USD $4.47
Unit Price: USD $4.470346
≥1 USD $4.470346
≥10 USD $4.217304
≥100 USD $3.978591
≥500 USD $3.753388
≥1000 USD $3.540931
Inventory: 1565
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.4mm
Length 5mm
Technical
Nominal Input Voltage (DC) 12V
Multiplexed Display Capability NO
Switching Frequency 1MHz
Number of Segments 1
Dimming Analog, PWM
Internal Switch(s) No
Max Input Voltage 36V
Min Input Voltage 5.5V
Topology SEPIC, Step-Down (Buck), Step-Up (Boost)
Max Output Voltage 60V
Max Supply Current 7mA
Max Supply Voltage 36V
Number of Outputs 1
Base Part Number ALED60
Terminal Pitch 0.65mm
Supply Voltage 12V
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Applications Automotive
Type DC DC Controller
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tube
Operating Temperature -40°C~150°C TJ
Physical
Weight 62.709145mg
Number of Pins 16
Package / Case 16-TSSOP (0.173, 4.40mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 14 Weeks
