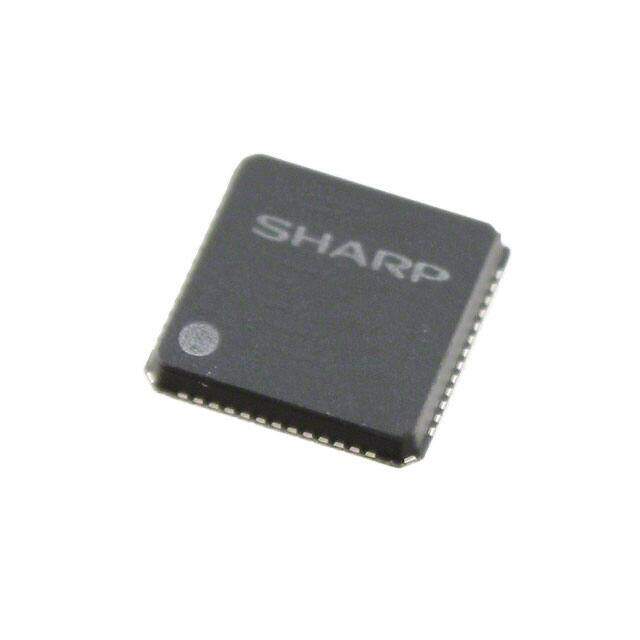

IR2D20U
RoHS
RoHS compliant
RoHS compliantPackage VQFN
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tray Surface Mount e6 LED DISPLAY DRIVER led driver 7.2mm -1mA 5.5V 1.6W
PDF
/
Buying Options
Total Price: USD $3.18
Unit Price: USD $3.1768
≥1 USD $3.1768
≥10 USD $2.8556
≥100 USD $2.69984
≥500 USD $2.339814
≥1000 USD $2.219782
≥3000 USD $1.991801
Inventory: 3525
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 7.2mm
Length 7.2mm
Height Seated (Max) 0.92mm
Technical
Data Input Mode SERIAL
Multiplexed Display Capability NO
Number of Segments 24
Low Level Output Current 1mA
High Level Output Current -1mA
Interface IC Type LED DISPLAY DRIVER
Power Dissipation 1.6W
Temperature Grade COMMERCIAL
Operating Supply Voltage 5.5V
Output Voltage 18V
Number of Outputs 24
Frequency 20MHz
Terminal Pitch 0.4mm
Supply Voltage 5V
Number of Functions 1
Terminal Position QUAD
Technology CMOS
Max Power Dissipation 1.6W
Min Operating Temperature -10°C
Max Operating Temperature 70°C
Terminal Finish TIN BISMUTH
Number of Terminations 52
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Discontinued
JESD-609 Code e6
Published 2007
Packaging Tray
Physical
Number of Pins 52
Package / Case VQFN
Mount Surface Mount
Supply Chain
Factory Lead Time 1416 Weeks
Alternative Model
