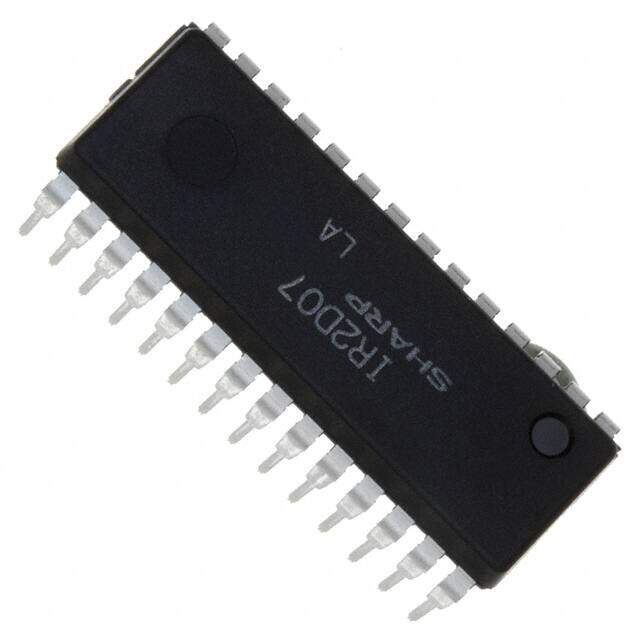

IR2D07
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tube Through Hole e6 LED DISPLAY DRIVER led driver 25.5mm -1mA 5.5V 1.35W
PDF
/
Buying Options
Total Price: USD $2.33
Unit Price: USD $2.332
≥1 USD $2.332
≥10 USD $2.09616
≥100 USD $1.977536
≥500 USD $1.684936
≥1000 USD $1.582064
≥3000 USD $1.38431
Inventory: 3581
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 1416 Weeks
Physical
Mount Through Hole
Number of Pins 28
Technical
Packaging Tube
JESD-609 Code e6
Part Status Discontinued
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 28
Terminal Finish TIN BISMUTH
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Max Power Dissipation 1.35W
Technology BICMOS
Terminal Position DUAL
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.778mm
Frequency 20MHz
Number of Outputs 16
Output Voltage 3V
Operating Supply Voltage 5.5V
Temperature Grade INDUSTRIAL
Power Dissipation 1.35W
Max Supply Current 1.5mA
Interface IC Type LED DISPLAY DRIVER
High Level Output Current -1mA
Low Level Output Current 1mA
Number of Segments 16
Multiplexed Display Capability NO
Data Input Mode SERIAL
Dimensions
Height Seated (Max) 4.6mm
Length 25.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
