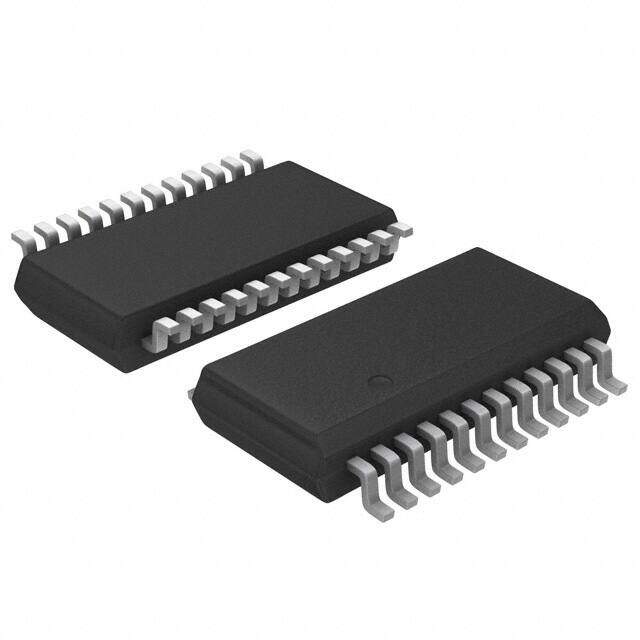

CAT4016VSR-T2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) R-PDSO-G24 LED DISPLAY DRIVER MATTE TIN led driver 8.65mm 3V 25MHz 85C
PDF
/
Buying Options
Total Price: USD $14.65
Unit Price: USD $14.65185
≥1 USD $14.65185
≥10 USD $12.02225
≥100 USD $11.647
≥500 USD $11.2708
≥1000 USD $10.89555
Inventory: 1131
Minimum: 1
-
+
Technical Details
Physical
Surface Mount YES
Technical
Packaging Tape & Reel (TR)
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
Terminal Finish MATTE TIN
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.635mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 24
JESD-30 Code R-PDSO-G24
Qualification Status COMMERCIAL
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Supply Voltage-Max (Vsup) 5.5V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 3V
Interface IC Type LED DISPLAY DRIVER
fmax-Min 25 MHz
Number of Segments 16
Multiplexed Display Capability NO
Data Input Mode SERIAL
Dimensions
Height Seated (Max) 1.73mm
Length 8.65mm
Width 3.895mm
Compliance
RoHS Status ROHS3 Compliant
