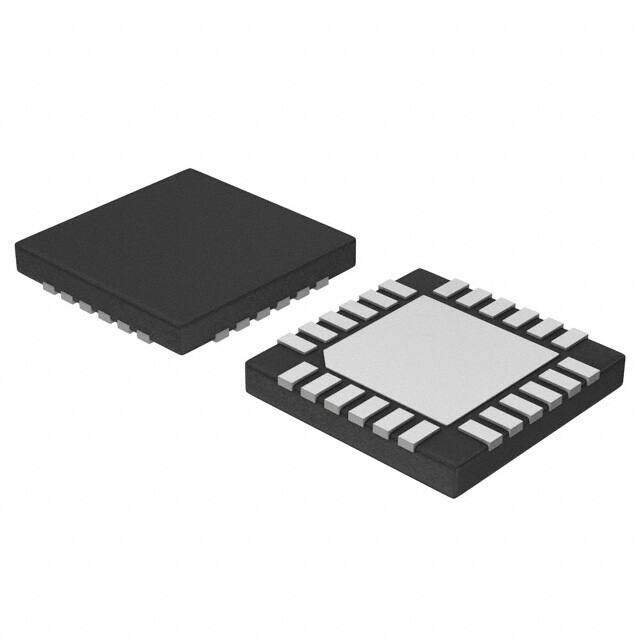

NCP5680MUTXG
RoHS
/
Package 24-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) NCP5680 Switched Capacitor (Charge Pump) Surface Mount led driver 3.5mm 400mA 5.5V 40mW
PDF
/
Inventory: 1422
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 24-UFQFN Exposed Pad
Number of Pins 24
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2009
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
ECCN Code EAR99
Type DC DC Controller
Applications Camera Flash
Terminal Position QUAD
Number of Functions 1
Supply Voltage 4.2V
Terminal Pitch 0.4mm
Frequency 1MHz
Base Part Number NCP5680
Pin Count 24
Number of Outputs 2
Max Supply Voltage 5.5V
Min Supply Voltage 2.7V
Power Dissipation 40mW
Voltage - Output 4.5V~5.3V
Topology Switched Capacitor (Charge Pump)
Output Current per Channel 400mA
Internal Switch(s) No
fmax-Min 1.15 MHz
Number of Segments 1
Voltage - Supply (Min) 2.7V
Multiplexed Display Capability NO
Data Input Mode SERIAL
Dimensions
Height Seated (Max) 0.55mm
Length 3.5mm
Width 3.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
