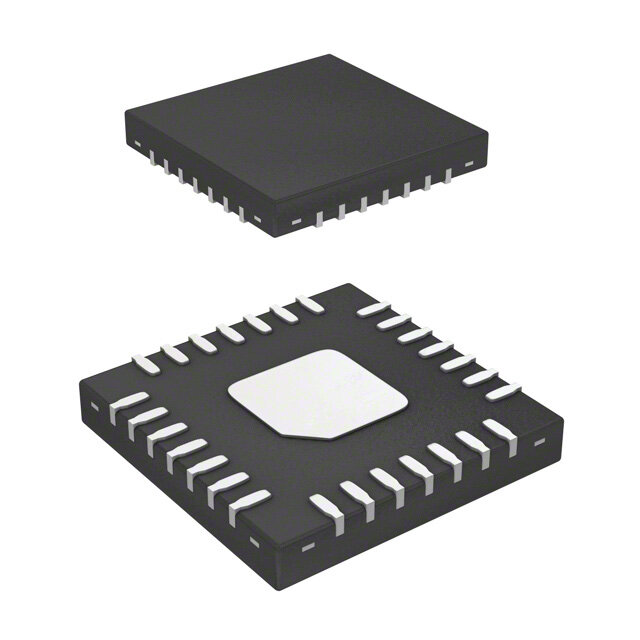

MSL1061AV-R image
Favorite
MSL1061AV-R image
Favorite
RoHS
RoHS RoHS compliant
Package 28-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description LED Lighting Drivers 6Str LED Dvr Dgtl 1.1MHz 48V r 1.5%
PDF
/
Inventory: 912
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Voltage - Supply (Min) 4.75V
Voltage - Supply (Max) 36V
Dimming Analog, PWM
Internal Switch(s) Yes
Current - Output / Channel 30mA
Topology Step-Up (Boost)
Voltage - Output 48V
Max Supply Current 30mA
Number of Outputs 6
Base Part Number MSL1061
Frequency 1.1MHz
Applications Backlight
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type DC DC Regulator
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA

Physical

Supplier Device Package 28-TQFN (5x5)
Package / Case 28-WFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
