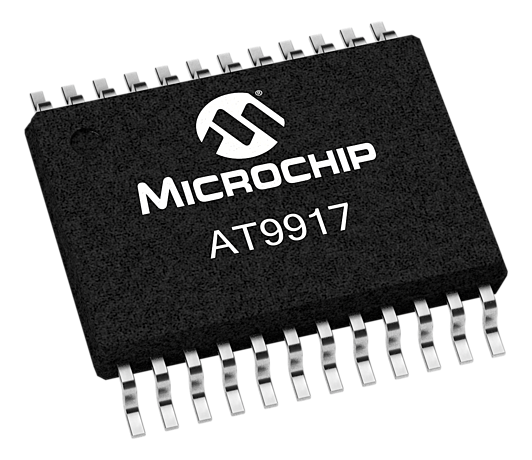

AT9917TS-GVAO
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) Automotive AEC-Q100 R-PDSO-G24 LED DISPLAY DRIVER led driver 7.8mm 5.3V 0.58MHz 125C
PDF
/
Inventory: 1155
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.4mm
Length 7.8mm
Height Seated (Max) 1.2mm
Technical
Multiplexed Display Capability NO
Number of Segments 1
fmax-Min 0.58 MHz
Screening Level AEC-Q100; TS 16949
Interface IC Type LED DISPLAY DRIVER
Supply Voltage-Min (Vsup) 5.3V
Supply Voltage-Max (Vsup) 40V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 125°C
JESD-30 Code R-PDSO-G24
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Supply Voltage 12V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Terminal Finish Matte Tin (Sn)
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q100
Published 2010
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
