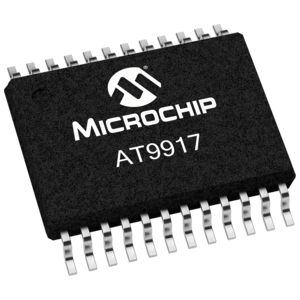

AT9917TS-G
RoHS
RoHS compliant
RoHS compliantPackage 24-TSSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) AT9917 SEPIC Step-Down (Buck) Step-Up (Boost) Analog PWM led driver 7.8mm 40V 100kHz~800kHz -40C~150C TJ
PDF
/
Inventory: 1247
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.4mm
Length 7.8mm
Technical
Multiplexed Display Capability NO
Voltage - Supply (Min) 5.3V
Number of Segments 1
Dimming Analog, PWM
fmax-Min 0.58 MHz
Internal Switch(s) No
Topology SEPIC, Step-Down (Buck), Step-Up (Boost)
Max Supply Voltage 40V
Number of Outputs 1
JESD-30 Code R-PDSO-G24
Base Part Number AT9917
Frequency 100kHz~800kHz
Terminal Pitch 0.65mm
Supply Voltage 12V
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Applications Automotive
Type DC DC Controller
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q100
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Package / Case 24-TSSOP (0.173, 4.40mm Width)
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
