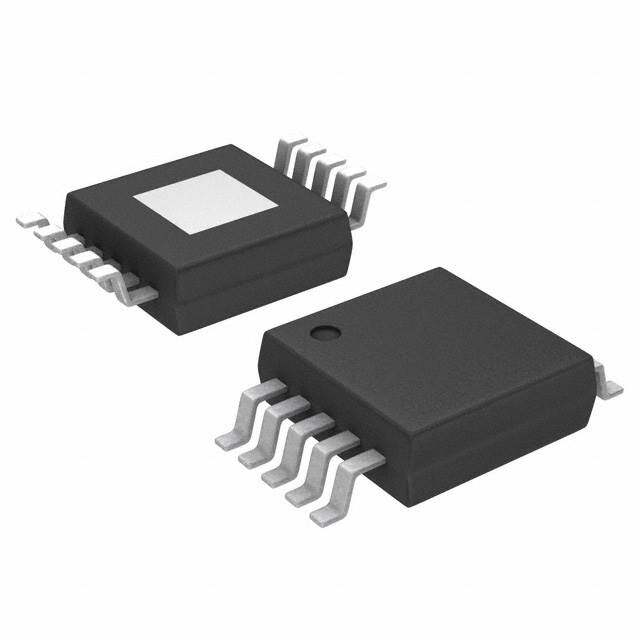

MAX7306AUB+T
RoHS
/
Package UMAX
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
UMAX Surface Mount e3 INTERFACE CIRCUIT led driver 3mm 1.62V 1MHz 125C
PDF
/
Inventory: 9419
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 1.1mm
Technical
Interface IC Type INTERFACE CIRCUIT
Supply Voltage-Min (Vsup) 1.62V
Temperature Grade AUTOMOTIVE
Power Supplies 1.8/3.3V
Supply Voltage-Max (Vsup) 3.6V
Qualification Status Not Qualified
Number of Outputs 4
Pin Count 10
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 1MHz
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Subcategory Display Drivers
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Tin (Sn)
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2010
Physical
Number of Pins 10
Package / Case UMAX
Mount Surface Mount
