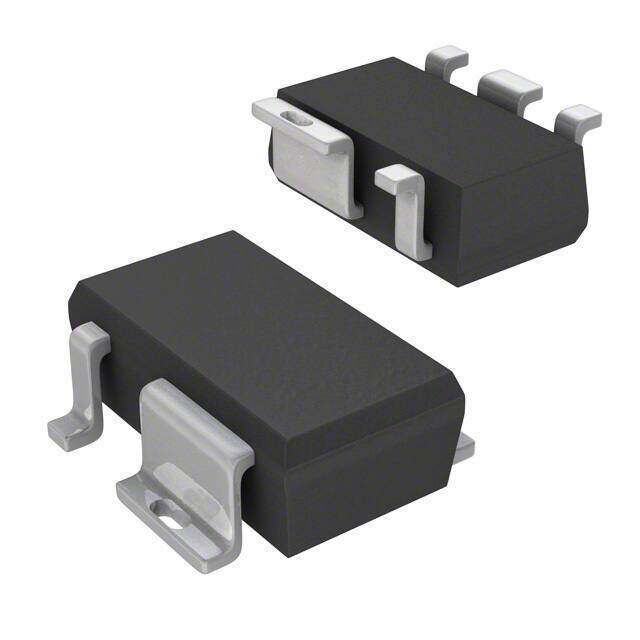

TLE42403MHTSA1
RoHS
/
Package 6-SMD (5 Leads), Gull Wing
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
LED DRVR 3Segment 3.3V/5V/9V/12V/15V/18V/24V Automotive 5-Pin(3+2Tab) SCT-595
PDF
/
Inventory: 1589
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Length 2.9mm
Technical
Data Input Mode SERIAL
Multiplexed Display Capability NO
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 45V
Number of Segments 3
Internal Switch(s) Yes
Current - Output / Channel 58mA
Voltage - Output 15V
Number of Outputs 1
JESD-30 Code R-PDSO-G5
Base Part Number TLE4240
Terminal Pitch 0.95mm
Supply Voltage 13.5V
Number of Functions 1
Terminal Position DUAL
Type Linear
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Surface Mount YES
Package / Case 6-SMD (5 Leads), Gull Wing
Mounting Type Surface Mount
