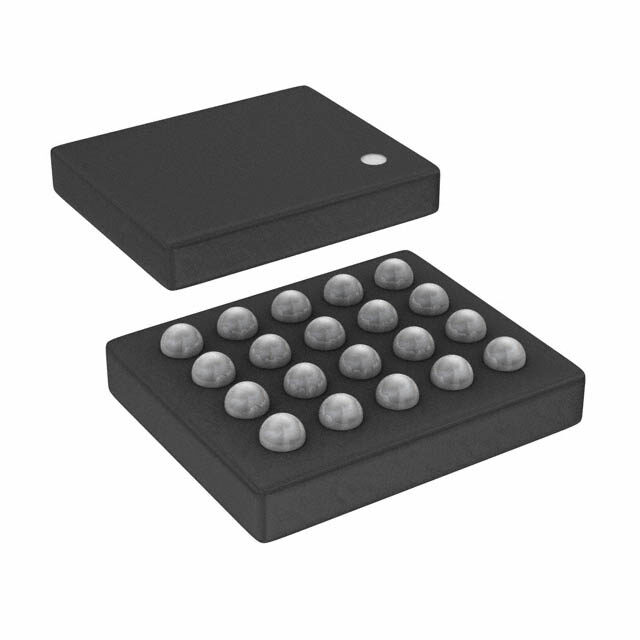

AS3630-ZWLT image
Favorite
AS3630-ZWLT image
Favorite

AS3630-ZWLT

ams
RoHS
/
Package 25-UFBGA, WLCSP
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description RoHS Compliant Camera Flash Obsolete DC DC Regulator IC LED Driver -30C~85C TA 4MHz 2.77W 4.8V
PDF
/
Inventory: 1186
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 25-UFBGA, WLCSP
Supplier Device Package 25-WLCSP (2.5x2.5)

Technical

Operating Temperature -30°C~85°C TA
Packaging Tape & Reel (TR)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type DC DC Regulator
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Applications Camera Flash
Max Power Dissipation 2.77W
Frequency 4MHz
Number of Outputs 1
Max Supply Voltage 4.8V
Output Current 8A
Max Supply Current 10μA
Voltage - Output 10V
Topology Step-Up (Boost)
Output Current per Channel 8A
Current - Output / Channel 8A Flash
Internal Switch(s) Yes
Dimming I2C
Voltage - Supply (Max) 4.8V
Voltage - Supply (Min) 2.5V

Compliance

RoHS Status RoHS Compliant
