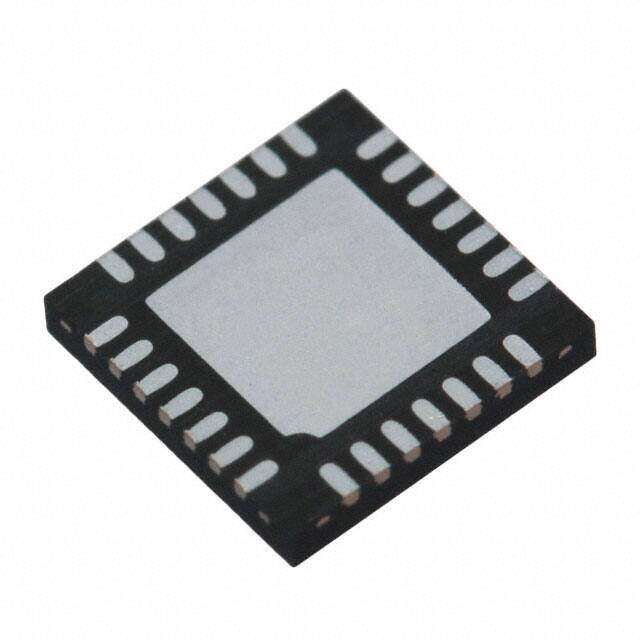

AS1113-BQFR
RoHS
/
Package 28-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tray Shift Register Surface Mount 8542.39.00.01 led driver 5mm 50mA 5.5V 50MHz
PDF
/
Buying Options
Total Price: USD $1.04
Unit Price: USD $1.035478
≥1 USD $1.035478
≥10 USD $0.976863
≥100 USD $0.921569
≥500 USD $0.869403
≥1000 USD $0.82019
Inventory: 9246
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 5mm
Length 5mm
Height Seated (Max) 0.8mm
Technical
Data Input Mode SERIAL
Display Mode BAR GRAPH
Multiplexed Display Capability NO
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 5.5V
Number of Segments 16
fmax-Min 30 MHz
Low Level Output Current 500μA
High Level Output Current 50mA
Internal Switch(s) Yes
Output Current per Channel 50mA
Topology Shift Register
Voltage - Output 15V
Max Supply Current 50mA
Power Supplies 3.3/5V
Operating Supply Voltage 5.5V
Qualification Status Not Qualified
Pin Count 28
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 50MHz
Terminal Pitch 0.5mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Subcategory Display Drivers
HTS Code 8542.39.00.01
Applications Signage
Type Linear
ECCN Code EAR99
Number of Terminations 28
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 28
Surface Mount YES
Package / Case 28-WFQFN Exposed Pad
Mounting Type Surface Mount
Alternative Model
