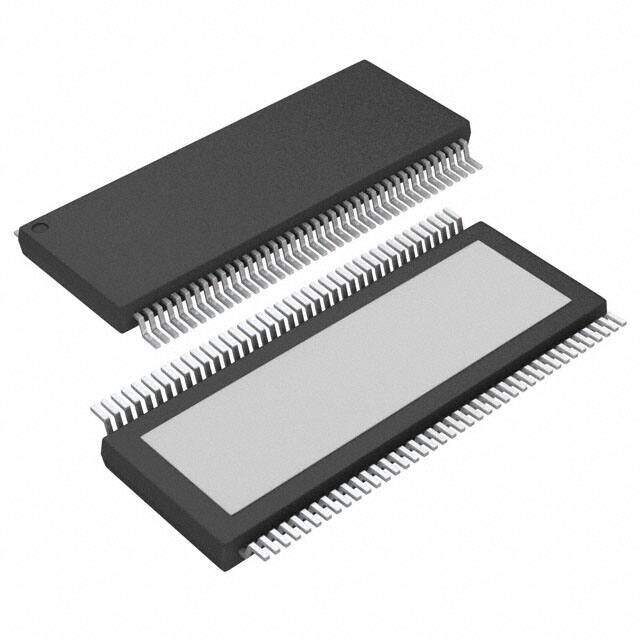

TPS2343DDPR
RoHS
RoHS compliant
RoHS compliantPackage 80-TFSOP (0.240, 6.10mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Hot Swap Controllers
Description
Obsolete Surface Mount Contains Lead GULL WING Hot Plug Controller -40C~85C 1.5V 3.3V 5V ±12V 100mA 375mA 1.1A 17mm
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.4041
≥1 USD $1.4041
≥10 USD $1.15235
≥100 USD $1.11625
≥500 USD $1.08015
≥1000 USD $1.04405
Inventory: 3026
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 80-TFSOP (0.240, 6.10mm Width) Exposed Pad
Number of Pins 80
Weight 262.403186mg
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e3
Feature Latched Fault, Thermal Limit
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 80
ECCN Code EAR99
Type Hot Plug Controller
Terminal Finish Matte Tin (Sn)
Applications PCI, PCI-X
HTS Code 8542.39.00.01
Subcategory Power Management Circuits
Voltage - Supply 1.5V 3.3V 5V ±12V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 12V
Terminal Pitch 0.4mm
Depth 6.1mm
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TPS2343
Pin Count 80
Qualification Status Not Qualified
Output Voltage 2.8V
Supply Voltage-Min (Vsup) 10.8V
Number of Channels 12
Current - Output (Max) 100mA 375mA 1.1A
Nominal Supply Current 3mA
Adjustable Threshold YES
Nominal Input Voltage 13.2V
Internal Switch(s) Both
Programmable Features Current Limit, Slew Rate
Dimensions
Height Seated (Max) 1.2mm
Length 17mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
