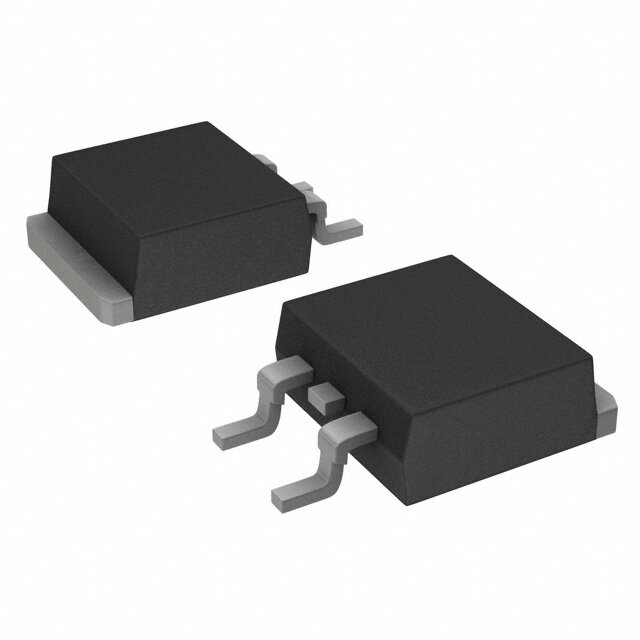

IPS031S
RoHS
/
Package D2PAK
Category Integrated Circuits (ICs) / PMIC - Hot Swap Controllers
Description
Contains Lead AUTOMOTIVE MOS GULL WING (Type) 1.56W 1.5mus 150C 6V
PDF
/
Buying Options
Total Price: USD $1.78
Unit Price: USD $1.7776
≥1 USD $1.7776
Inventory: 58128
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 8.79mm
Height Seated (Max) 4.69mm
Technical
Output Current Flow Direction SINK
Built-in Protections OVER CURRENT; THERMAL
Drain to Source Resistance 60mOhm
Output Peak Current Limit-Nom 10A
Turn On Time 0.6 μs
Fault Protection Over Temperature
Driver Number of Bits 1
Fall Time (Typ) 1.5 μs
Rise Time 1μs
Output Current per Channel 2.8A
Current - Output 2.2A
Power Dissipation 1.56W
Output Configuration Low Side
Nominal Supply Current 10mA
Power Dissipation-Max 1.56W
Min Supply Voltage 4V
Max Supply Voltage 6V
Interface On/Off
Number of Channels 1
Temperature Grade AUTOMOTIVE
Operating Supply Voltage 35V
Max Output Current 2.8A
Qualification Status Not Qualified
JESD-30 Code R-PSSO-G2
Pin Count 4
Time@Peak Reflow Temperature-Max (s) 30
Current Rating 2.8A
Terminal Pitch 2.54mm
Supply Voltage 14V
Number of Functions 1
Peak Reflow Temperature (Cel) 225
Terminal Form GULL WING
Terminal Position SINGLE
Technology MOS
Subcategory Peripheral Drivers
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Terminal Finish TIN LEAD
Resistance 45mOhm
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1
Pbfree Code no
JESD-609 Code e0
Published 2001
Packaging Bulk
Physical
Number of Pins 3
Package / Case D2PAK
Mount Surface Mount
