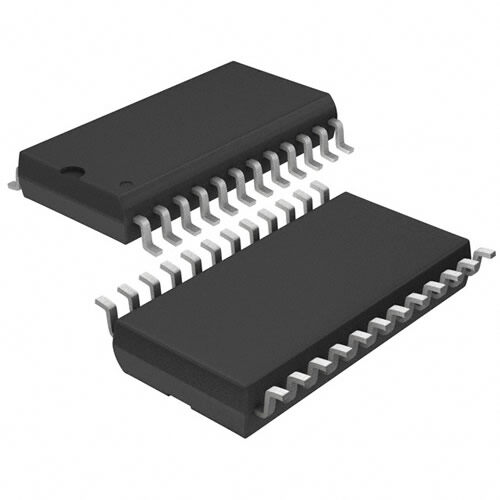

TLE7232G image
Favorite
TLE7232G image
Favorite
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / PMIC - Hot Swap Controllers
Description DUAL EAR99 Serial TRANSIENT; OVER CURRENT; THERMAL hot swap controller 15.6mm 3mA 1Ohm 5V
PDF
/
Buying Options
Total Price: USD $2
Unit Price: USD $2.00355
≥1 USD $2.00355
≥10 USD $1.64445
≥100 USD $1.59315
≥500 USD $1.54185
≥1000 USD $1.49055
Inventory: 1171
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 7.6mm
Length 15.6mm
Height 2.45mm

Technical

Built-in Protections TRANSIENT; OVER CURRENT; THERMAL
Turn Off Time 60 μs
Output Peak Current Limit-Nom 1A
Turn On Time 60 μs
Driver Number of Bits 8
Output Current per Channel 240mA
Current - Output 240mA
Max Supply Current 3mA
Current 1A
Nominal Supply Current 3mA
Interface Serial
Voltage 5.5V
Power Supplies 5V
Max Output Current 1A
Number of Outputs 8
Pin Count 24
Terminal Pitch 1.27mm
Supply Voltage 5V
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Peripheral Drivers
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Resistance 1Ohm
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
Packaging Digi-Reel?

Physical

Number of Pins 24
Package / Case SOIC
Mount Surface Mount
