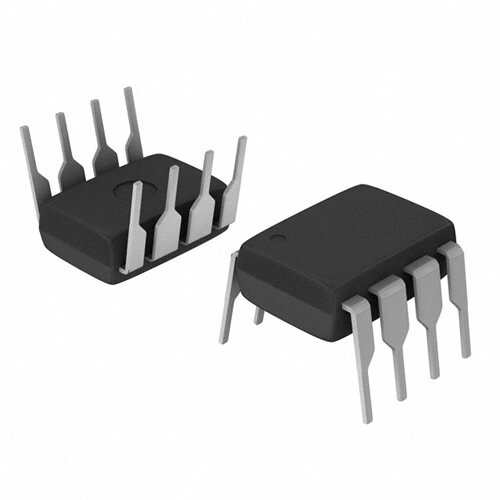

UCC27322PE4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
Rail/Tube ACTIVE (Last Updated: 2days ago) BUFFER OR INVERTER BASED MOSFET DRIVER DUAL gate driver 70ns 105C 9A 350mW
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.940036
≥1 USD $0.940036
≥200 USD $0.363673
≥500 USD $0.351857
≥1000 USD $0.345293
Inventory: 5795
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 3.9mm
Width 6.35mm
Length 9.81mm
Height 5.08mm
Technical
Turn Off Time 0.07 μs
High Side Driver NO
Output Peak Current Limit-Nom 9A
Turn On Time 0.07 μs
Interface IC Type BUFFER OR INVERTER BASED MOSFET DRIVER
Fall Time (Typ) 30 ns
Rise Time 70ns
Output Characteristics TOTEM-POLE
Turn On Delay Time 70 ns
Propagation Delay 70 ns
Current - Output 9A
Max Supply Current 1mA
Power Dissipation 350mW
Nominal Supply Current 1mA
Power Dissipation-Max 350mW
Min Supply Voltage 4V
Max Supply Voltage 15V
Temperature Grade INDUSTRIAL
Max Output Current 9mA
Number of Outputs 1
Pin Count 8
Terminal Pitch 2.54mm
Supply Voltage 14V
Number of Functions 1
Terminal Position DUAL
Technology BICMOS
Subcategory MOSFET Drivers
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 8
Pbfree Code yes
JESD-609 Code e4
Packaging Rail/Tube
Physical
Weight 440.409842mg
Number of Pins 8
Package / Case PDIP
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
