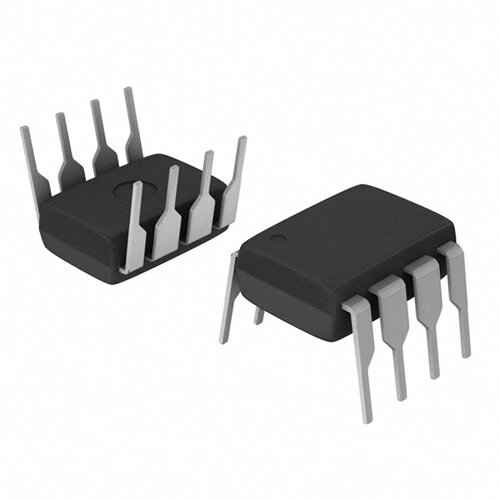

UCC27321PE4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
PDIP ACTIVE (Last Updated: 1day ago) BUFFER OR INVERTER BASED MOSFET DRIVER DUAL gate driver 70ns 105C 9A 350mW
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.389858
≥1 USD $1.389858
≥10 USD $1.311183
≥100 USD $1.236965
≥500 USD $1.166952
≥1000 USD $1.1009
Inventory: 6947
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Through Hole
Package / Case PDIP
Number of Pins 8
Weight 440.409842mg
Technical
JESD-609 Code e4
Pbfree Code yes
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Subcategory MOSFET Drivers
Technology BICMOS
Terminal Position DUAL
Number of Functions 1
Supply Voltage 14V
Terminal Pitch 2.54mm
Pin Count 8
Number of Outputs 1
Max Output Current 9mA
Temperature Grade INDUSTRIAL
Max Supply Voltage 15V
Min Supply Voltage 4V
Power Dissipation-Max 350mW
Nominal Supply Current 650μA
Power Dissipation 350mW
Max Supply Current 650μA
Current - Output 9A
Propagation Delay 70 ns
Turn On Delay Time 70 ns
Output Characteristics TOTEM-POLE
Rise Time 70ns
Fall Time (Typ) 30 ns
Interface IC Type BUFFER OR INVERTER BASED MOSFET DRIVER
Turn On Time 0.07 μs
Output Peak Current Limit-Nom 9A
High Side Driver NO
Turn Off Time 0.07 μs
Dimensions
Height 5.08mm
Length 9.81mm
Width 6.35mm
Thickness 3.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
