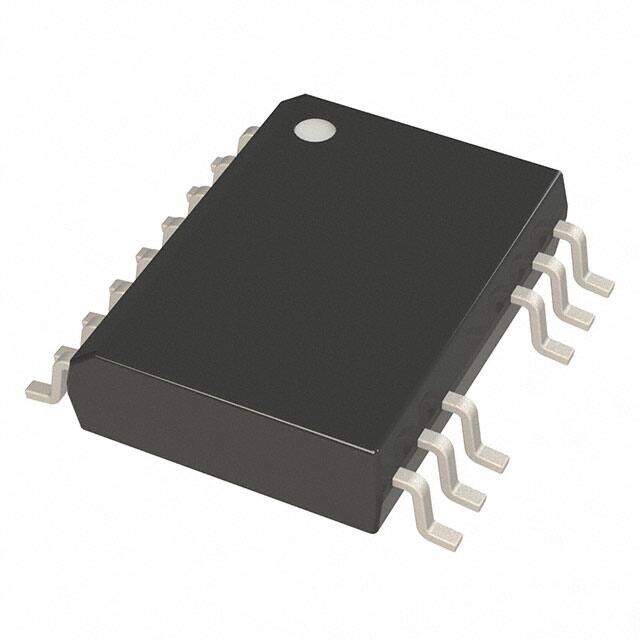

UCC21530DWK
RoHS
RoHS compliant
RoHS compliantPackage 14-SOIC (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
Tube UCC21530 Half-Bridge TRANSIENT; UNDER VOLTAGE gate driver 6ns 7ns -40C~130C TJ 4A 6A 1.2V 1.6V
PDF
/
Buying Options
Total Price: USD $5.33
Unit Price: USD $5.3328
≥1 USD $5.3328
≥10 USD $4.81536
≥100 USD $4.59162
≥500 USD $3.98677
≥1000 USD $3.807637
≥3000 USD $3.471653
Inventory: 1420
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Length 10.3mm
Technical
Output Current Flow Direction SOURCE SINK
Built-in Protections TRANSIENT; UNDER VOLTAGE
Logic Voltage - VIL, VIH 1.2V 1.6V
Current - Peak Output (Source, Sink) 4A 6A
Gate Type IGBT, N-Channel, P-Channel MOSFET
Driven Configuration Half-Bridge
Supply Voltage1-Nom 15V
Number of Drivers 2
Channel Type Independent
Interface IC Type BUFFER OR INVERTER BASED PERIPHERAL DRIVER
Rise / Fall Time (Typ) 6ns 7ns
Output Current-Max 6A
Input Type CMOS/TTL
JESD-30 Code S-PDSO-N14
Base Part Number UCC21530
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Voltage - Supply 3V~18V
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 14
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tube
Operating Temperature -40°C~130°C TJ
Physical
Surface Mount YES
Package / Case 14-SOIC (0.295, 7.50mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
