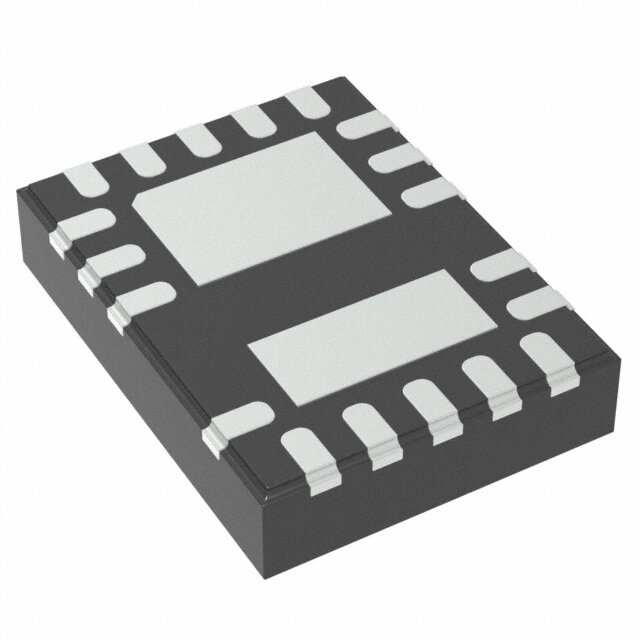

LMG1210RVRR

Texas Instruments
RoHS
RoHS RoHS compliant
Package 19-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description Tape & Reel (TR) LMG1210 Half-Bridge THERMAL; UNDER VOLTAGE gate driver 500ps 500ps -40C~125C TJ 1.5A 3A 200V
PDF
/
Buying Options
Total Price: USD $5.22
Unit Price: USD $5.2184
≥1 USD $5.2184
≥10 USD $4.68776
≥100 USD $4.43168
≥500 USD $3.840672
≥1000 USD $3.643728
≥3000 USD $3.269499
Inventory: 5088
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mounting Type Surface Mount, Wettable Flank
Package / Case 19-WFQFN Exposed Pad
Surface Mount YES

Technical

Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 19
Terminal Finish Matte Tin (Sn)
Voltage - Supply 6V~18V
Terminal Position QUAD
Terminal Form NO LEAD
Number of Functions 1
Supply Voltage 5V
Base Part Number LMG1210
JESD-30 Code R-PQCC-N19
Input Type Non-Inverting
Output Current-Max 3A
Rise / Fall Time (Typ) 500ps 500ps
Channel Type Independent
Number of Drivers 2
Turn On Time 0.018 μs
Output Peak Current Limit-Nom 0.11A
Driven Configuration Half-Bridge
Gate Type N-Channel MOSFET
Current - Peak Output (Source, Sink) 1.5A 3A
Turn Off Time 0.018 μs
Built-in Protections THERMAL; UNDER VOLTAGE
High Side Voltage - Max (Bootstrap) 200V
Output Current Flow Direction SOURCE SINK

Dimensions

Height Seated (Max) 0.8mm
Length 4mm
Width 3mm

Compliance

RoHS Status ROHS3 Compliant
