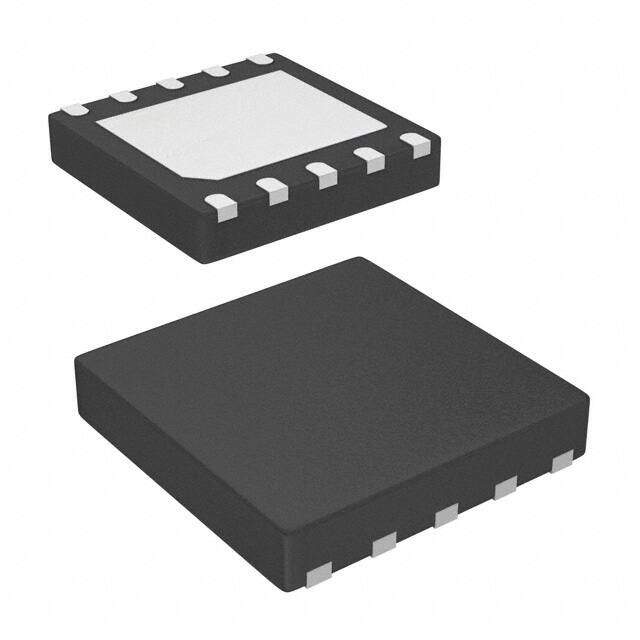

HIP2120FRTAZ image
Favorite
HIP2120FRTAZ image
Favorite
RoHS
RoHS RoHS compliant
Package 10-WDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description HALF BRIDGE BASED MOSFET DRIVER
PDF
/
Inventory: 1226
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 10-WDFN Exposed Pad
Supplier Device Package 10-TDFN (4x4)

Technical

Operating Temperature -55°C~150°C TJ
Packaging Tube
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Voltage - Supply 8V~14V
Input Type Inverting
Rise / Fall Time (Typ) 10ns 10ns
Channel Type Synchronous
Number of Drivers 2
Driven Configuration Half-Bridge
Gate Type N-Channel MOSFET
Current - Peak Output (Source, Sink) 2A 2A
Logic Voltage - VIL, VIH 3.7V 7.93V
High Side Voltage - Max (Bootstrap) 114V

Compliance

RoHS Status ROHS3 Compliant
