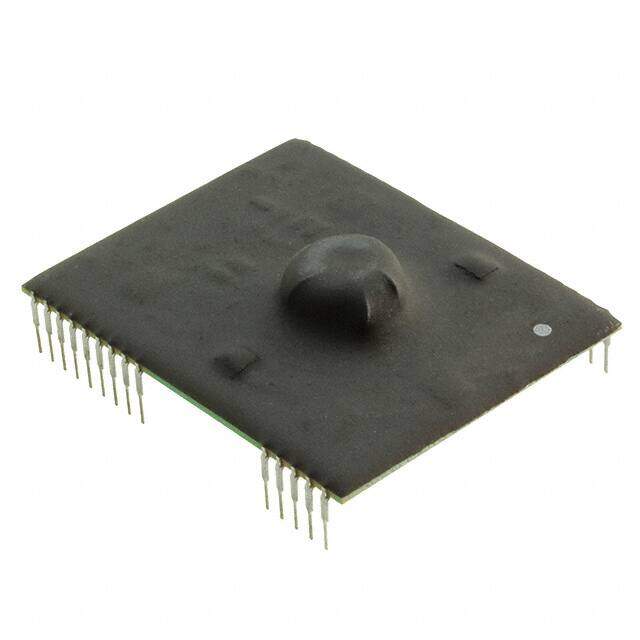

VLA567-01R
RoHS
/
Package 44-DIP Module, 28 Leads
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
IC GATE DRVR HALF-BRIDGE MODULE
PDF
/
Buying Options
Total Price: USD $224.99
Unit Price: USD $224.989537
≥1 USD $224.989537
≥10 USD $212.254281
≥100 USD $200.239888
≥500 USD $188.905552
≥1000 USD $178.21279
Inventory: 9724
Minimum: 1
-
+
Technical Details
Technical
Additional Feature LG-MAX
Technology HYBRID
Voltage - Supply 14.2V~15.8V
Terminal Position DUAL
Number of Functions 1
Supply Voltage 15V
Reach Compliance Code unknown
Supply Voltage-Max (Vsup) 15.8V
Analog IC - Other Type ANALOG CIRCUIT
Input Type Non-Inverting
Rise / Fall Time (Typ) 400ns 300ns
Channel Type Independent
Number of Drivers 2
Driven Configuration Half-Bridge
Number of Terminations 28
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Published 2014
Packaging Bulk
Operating Temperature -20°C~70°C TA
Gate Type IGBT
Physical
Package / Case 44-DIP Module, 28 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 17mm
