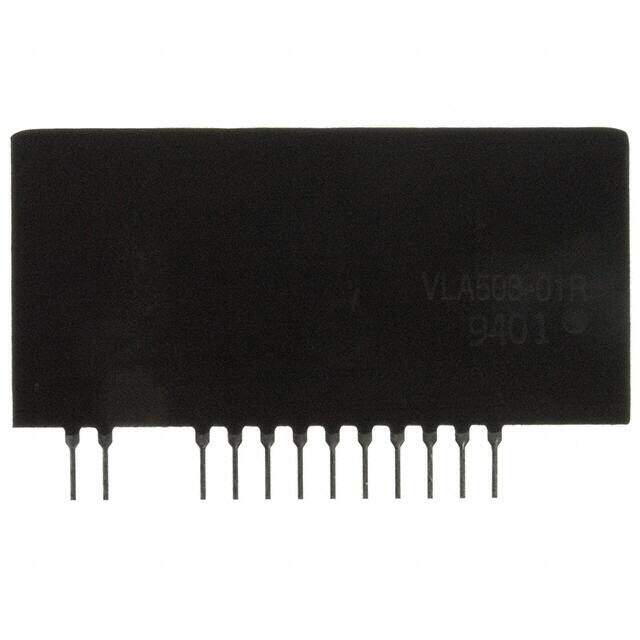

VLA503-01 image
Favorite
VLA503-01 image
Favorite

VLA503-01

Powerex Inc.
RoHS
/
Package 12-SIP
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description Bulk Low-Side 2007 OVER CURRENT gate driver 300ns 300ns -20C~60C TA 5A 5A 15V
PDF
/
Inventory: 1200
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 12-SIP
Number of Pins 14

Technical

Operating Temperature -20°C~60°C TA
Packaging Bulk
Published 2007
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Voltage - Supply 14V~15V
Number of Functions 1
Supply Voltage 15V
Terminal Pitch 2.54mm
Pin Count 12
Qualification Status Not Qualified
Max Output Current 5A
Input Type Non-Inverting
Rise / Fall Time (Typ) 300ns 300ns
Interface IC Type BUFFER OR INVERTER BASED PERIPHERAL DRIVER
Channel Type Single
Number of Drivers 1
Driven Configuration Low-Side
Gate Type IGBT
Current - Peak Output (Source, Sink) 5A 5A
Built-in Protections OVER CURRENT
Output Current Flow Direction SOURCE SINK

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
