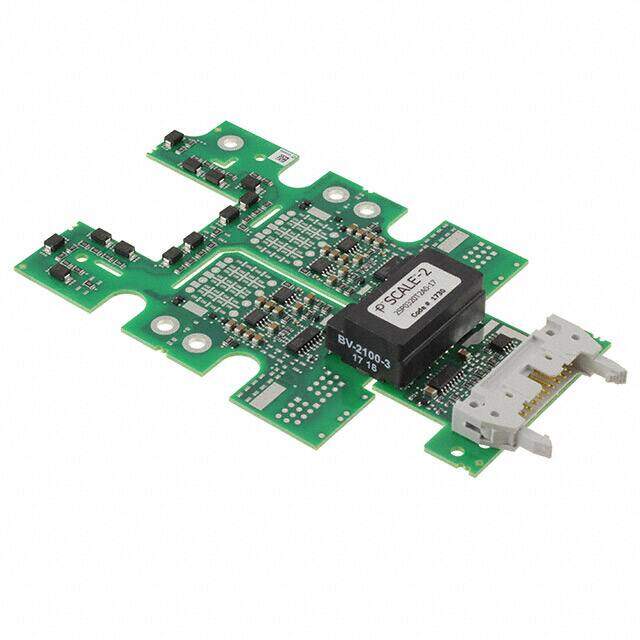

2SP0320V2A0-17
RoHS
/
Package Module
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
IC GATE DRVR HALF-BRIDGE MODULE
PDF
/
Buying Options
Total Price: USD $167.2
Unit Price: USD $167.2
≥1 USD $167.2
≥10 USD $162.052
≥100 USD $149.96168
Inventory: 32
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
High Side Voltage - Max (Bootstrap) 1700V
Current - Peak Output (Source, Sink) 20A 20A
Gate Type IGBT
Driven Configuration Half-Bridge
Number of Drivers 2
Channel Type Independent
Rise / Fall Time (Typ) 7ns 25ns
Voltage - Supply 14.5V~15.5V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SCALE?-2
Published 2012
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Package / Case Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
