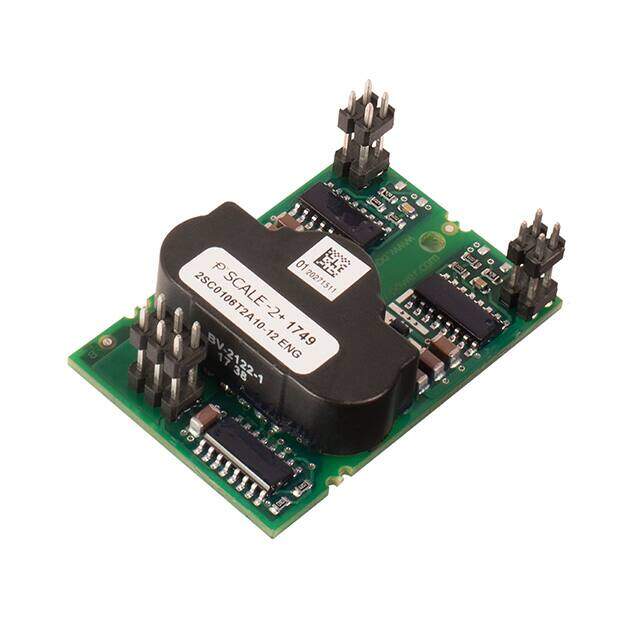

2SC0106T2A1-12 image
Favorite
2SC0106T2A1-12 image
Favorite

2SC0106T2A1-12

Power Integrations
RoHS
/
Package Module
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE MODULE
PDF
/
Buying Options
Total Price: USD $25.25
Unit Price: USD $25.2472
≥1 USD $25.2472
≥10 USD $23.2232
≥100 USD $20.196
≥500 USD $16.156888
≥1000 USD $15.785
Inventory: 811
Minimum: 1
-
+

Technical Details

Technical

Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Supply 14.5V~15.5V
Rise / Fall Time (Typ) 20ns 13ns
Channel Type Independent
Number of Drivers 2
Driven Configuration Half-Bridge
Gate Type IGBT
Current - Peak Output (Source, Sink) 6A 6A
High Side Voltage - Max (Bootstrap) 1200V
Series SCALE?-2
Published 2016
Packaging Tray
Operating Temperature -40°C~105°C TA

Compliance

RoHS Status Non-RoHS Compliant

Physical

Package / Case Module
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
