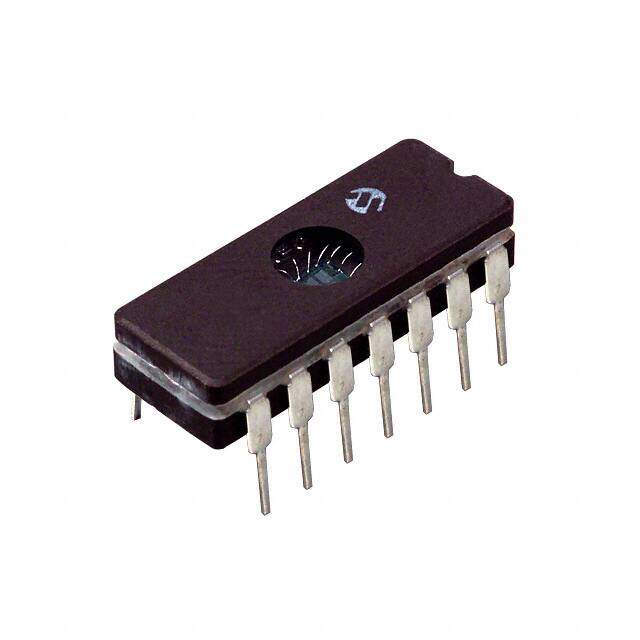

TC4467MJD
RoHS
RoHS compliant
RoHS compliantPackage 14-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
Tube TC4467 Low-Side 2002 gate driver 25ns -55C~150C TJ 1.2A 1.2A 840mW
PDF
/
Inventory: 1502
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 7.62mm
Length 19.305mm
Height Seated (Max) 5.08mm
Technical
Turn Off Time 0.1 μs
Logic Voltage - VIL, VIH 0.8V 2.4V
High Side Driver YES
Current - Peak Output (Source, Sink) 1.2A 1.2A
Gate Type N-Channel, P-Channel MOSFET
Driven Configuration Low-Side
Output Peak Current Limit-Nom 1.2A
Turn On Time 0.1 μs
Number of Drivers 4
Channel Type Independent
Interface IC Type NAND GATE BASED MOSFET DRIVER
Rise / Fall Time (Typ) 15ns 15ns
Fall Time (Typ) 25 ns
Rise Time 25ns
Input Type Inverting
Propagation Delay 75 ns
Power Dissipation 840mW
Nominal Supply Current 4mA
Max Output Current 1.2mA
Qualification Status Not Qualified
Pin Count 14
Base Part Number TC4467
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 4
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Voltage - Supply 4.5V~18V
Technology CMOS
Max Power Dissipation 840mW
Subcategory MOSFET Drivers
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Published 2002
Packaging Tube
Operating Temperature -55°C~150°C TJ
Physical
Number of Pins 14
Package / Case 14-CDIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
