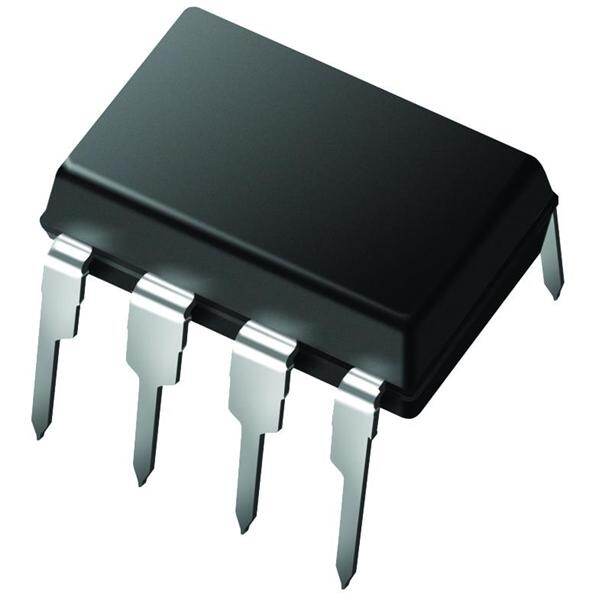

TC427EPAG image
Favorite
TC427EPAG image
Favorite
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description PDIP BUFFER OR INVERTER BASED MOSFET DRIVER DUAL CMOS gate driver 30ns 85C 8mA 730mW
PDF
/
Inventory: 9527
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Length 9.5mm
Height Seated (Max) 5.08mm

Technical

High Side Driver YES
Output Peak Current Limit-Nom 1.5A
Turn On Time 0.075 μs
Number of Drivers 2
Interface IC Type BUFFER OR INVERTER BASED MOSFET DRIVER
Fall Time (Typ) 30 ns
Rise Time 30ns
Nominal Supply Current 8mA
Power Dissipation-Max 730mW
Min Supply Voltage 4.5V
Max Supply Voltage 16V
Temperature Grade INDUSTRIAL
Qualification Status Not Qualified
Pin Count 8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 2
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Technology CMOS
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 8
Pbfree Code yes
JESD-609 Code e3

Physical

Surface Mount NO
Package / Case PDIP
