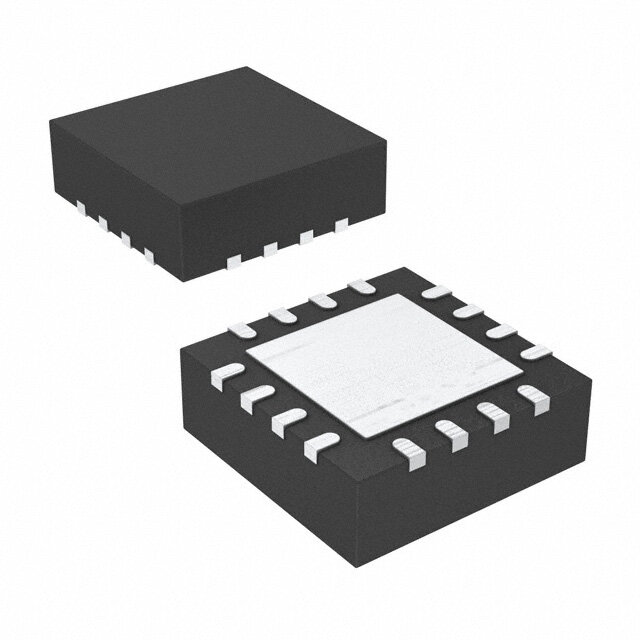

MD1822K6-G
RoHS
RoHS compliant
RoHS compliantPackage 16-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
Tape & Reel (TR) MD1822 Half-Bridge 2012 gate driver 7ns -20C~125C TJ 2A 2A 2.2W
PDF
/
Buying Options
Total Price: USD $1.59
Unit Price: USD $1.5928
≥1 USD $1.5928
≥10 USD $1.32
≥100 USD $1.1968
Inventory: 1393
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 1mm
Technical
Logic Voltage - VIL, VIH 0.3V 1.7V
High Side Driver YES
Current - Peak Output (Source, Sink) 2A 2A
Gate Type N-Channel, P-Channel MOSFET
Driven Configuration Half-Bridge
Output Peak Current Limit-Nom 2A
Number of Drivers 4
Channel Type Independent
Rise / Fall Time (Typ) 7ns 7ns
Fall Time (Typ) 7 ns
Rise Time 7ns
Turn On Delay Time 6.5 ns
Input Type Inverting, Non-Inverting
Propagation Delay 6.5 ns
Power Dissipation 2.2W
Max Output Current 2A
Base Part Number MD1822
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Voltage - Supply 5V~10V
Max Power Dissipation 2.2W
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -20°C~125°C TJ
Physical
Number of Pins 16
Package / Case 16-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
