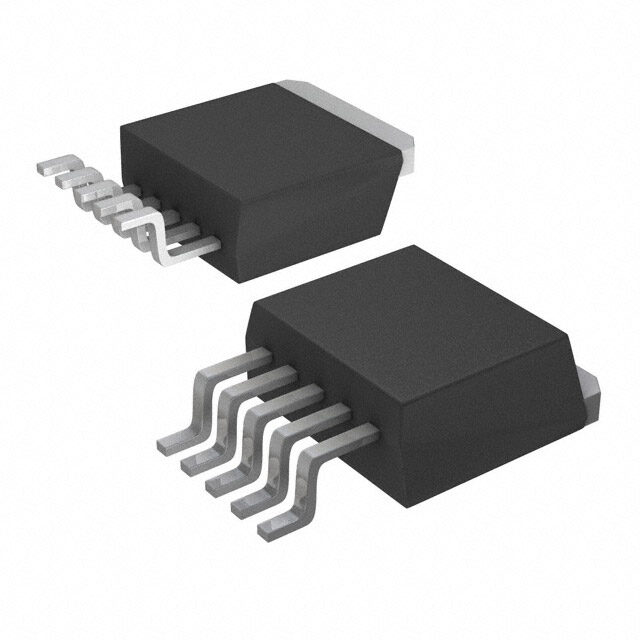

IXDD430YI
RoHS
/
Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
Bulk IXD*430 Low-Side 2005 gate driver 20ns -55C~150C TJ 30A 30A 2W
PDF
/
Inventory: 1526
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Weight 1.59999g
Technical
Operating Temperature -55°C~150°C TJ
Packaging Bulk
Published 2005
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Max Power Dissipation 2W
Voltage - Supply 8.5V~35V
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 18V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number IXD*430
Pin Count 4
JESD-30 Code R-PSSO-G5
Qualification Status Not Qualified
Operating Supply Voltage 35V
Nominal Supply Current 3mA
Output Current 30A
Input Type Non-Inverting
Rise Time 20ns
Fall Time (Typ) 18 ns
Rise / Fall Time (Typ) 18ns 16ns
Interface IC Type BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER
Channel Type Single
Number of Drivers 1
Turn On Time 0.045 μs
Output Peak Current Limit-Nom 30A
Driven Configuration Low-Side
Gate Type IGBT, N-Channel, P-Channel MOSFET
Current - Peak Output (Source, Sink) 30A 30A
High Side Driver YES
Logic Voltage - VIL, VIH 0.8V 3.5V
Turn Off Time 0.039 μs
Dimensions
Height Seated (Max) 4.8mm
Length 9.975mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
