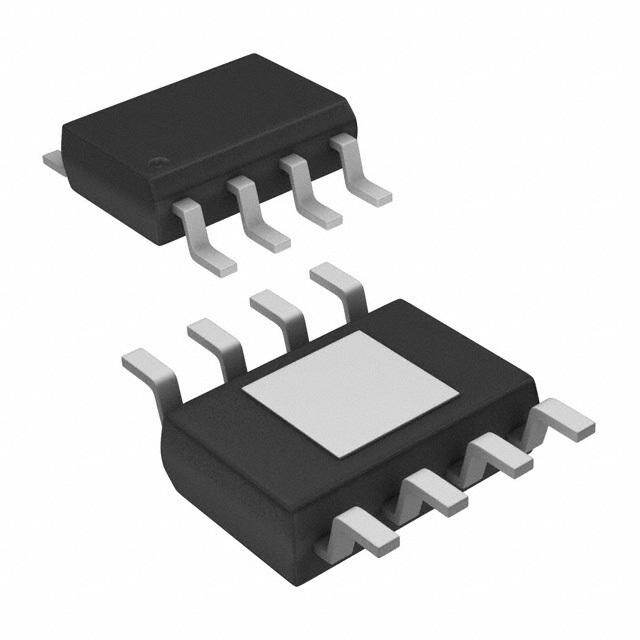

ISL6612EIB
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
GULL WING RoHS Compliant Discontinued Tin/Lead (Sn/Pb) IC Gate Driver 4.89mm 5V 3A 85C
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.9504
≥1 USD $0.9504
Inventory: 1025
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 3.9mm
Length 4.89mm
Height Seated (Max) 1.68mm
Technical
Supply Voltage1-Min 10.8V
High Side Driver YES
Supply Voltage1-Nom 12V
Output Peak Current Limit-Nom 3A
Interface IC Type HALF BRIDGE BASED MOSFET DRIVER
Supply Voltage-Min (Vsup) 5V
Temperature Grade INDUSTRIAL
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-PDSO-G8
Pin Count 8
Time@Peak Reflow Temperature-Max (s) 30
Number of Functions 1
Peak Reflow Temperature (Cel) 240
Terminal Form GULL WING
Terminal Position DUAL
Subcategory MOSFET Drivers
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1
Part Status Discontinued
JESD-609 Code e0
Published 2001
Physical
Mount Surface Mount
