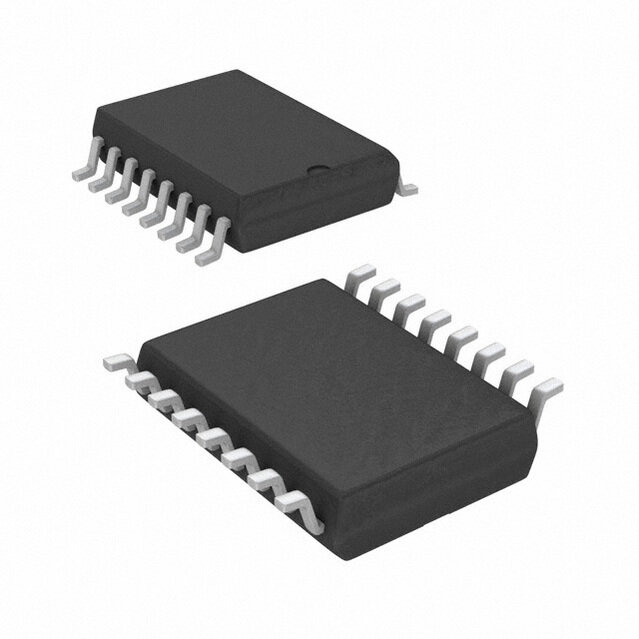

IR2110STR
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
GULL WING RoHS Compliant Tin/Lead (Sn/Pb) e0 IC Gate Driver 10.3mm 20V 1.25W 2A
PDF
/
Buying Options
Total Price: USD $1.77
Unit Price: USD $1.76747
≥1 USD $1.76747
≥10 USD $1.66742
≥100 USD $1.57304
≥500 USD $1.484
≥1000 USD $1.4
≥3000 USD $1.32075
Inventory: 140209
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 7.5mm
Length 10.3mm
Technical
High Side Driver YES
Output Peak Current Limit-Nom 2.5A
Turn On Time 0.15 μs
Number of Drivers 2
Channel Type Independent
Interface IC Type HALF BRIDGE BASED MOSFET DRIVER
Turn-Off Delay Time 10 ns
Fall Time (Typ) 25 ns
Rise Time 35ns
Turn On Delay Time 10 ns
Propagation Delay 150 ns
Power Dissipation 1.25W
Min Supply Voltage 10V
Max Supply Voltage 20V
Temperature Grade AUTOMOTIVE
Operating Supply Voltage 15V
Max Output Current 2A
Qualification Status Not Qualified
Pin Count 16
Time@Peak Reflow Temperature-Max (s) 30
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory MOSFET Drivers
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e0
Published 2012
Packaging Tape and Reel
Physical
Number of Pins 16
Package / Case SOIC
Mount Surface Mount
