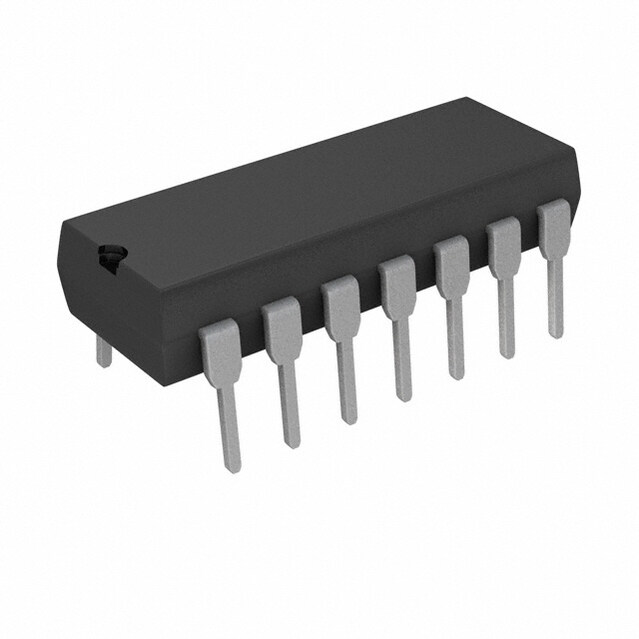

IR21014
RoHS
/
Package DIP
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
THROUGH-HOLE Non-RoHS Compliant Tin/Lead (Sn/Pb) e0 IC Gate Driver 19.305mm 15V 0.36A -40C
PDF
/
Buying Options
Total Price: USD $8.6
Unit Price: USD $8.59845
≥1 USD $8.59845
≥10 USD $7.05565
≥100 USD $6.83525
≥500 USD $6.61485
≥1000 USD $6.39445
Inventory: 1469
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Length 19.305mm
Height Seated (Max) 5.33mm
Technical
High Side Driver YES
Output Peak Current Limit-Nom 0.36A
Interface IC Type HALF BRIDGE BASED MOSFET DRIVER
Supply Voltage-Min (Vsup) 10V
Temperature Grade AUTOMOTIVE
Power Supplies 15V
Operating Temperature (Min) -40°C
Qualification Status Not Qualified
Number of Outputs 2
Pin Count 14
Time@Peak Reflow Temperature-Max (s) 30
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) 225
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Technology CMOS
Subcategory MOSFET Drivers
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 14
Pbfree Code no
JESD-609 Code e0
Published 2003
Packaging Bulk
Physical
Number of Pins 14
Surface Mount NO
Package / Case DIP
