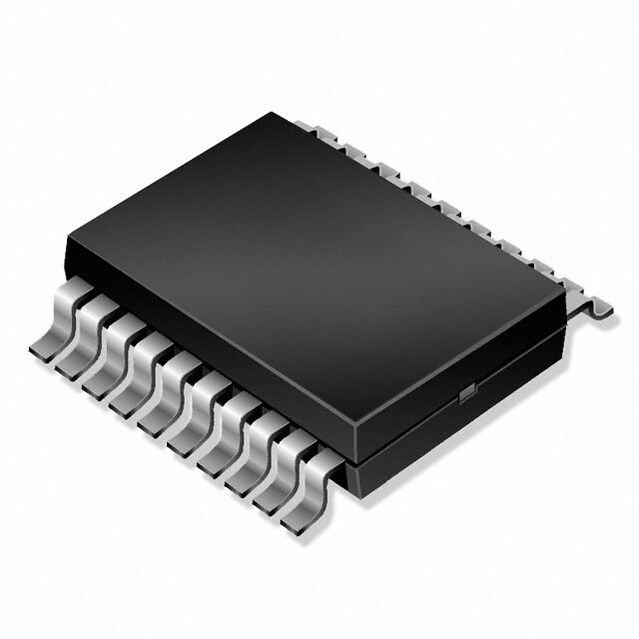

IR1176S
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
GULL WING Non-RoHS Compliant Tin/Lead (Sn/Pb) e0 IC Gate Driver 0.65mm 5V 4A 85C
PDF
/
Buying Options
Total Price: USD $6.76
Unit Price: USD $6.7564
≥1 USD $6.7564
≥10 USD $5.54325
≥100 USD $5.37035
≥500 USD $5.19745
≥1000 USD $5.0236
Inventory: 1616
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 5.3mm
Technical
High Side Driver YES
Output Peak Current Limit-Nom 4A
Interface IC Type BUFFER OR INVERTER BASED MOSFET DRIVER
Supply Voltage-Min (Vsup) 4V
Temperature Grade INDUSTRIAL
Qualification Status Not Qualified
Number of Outputs 2
Pin Count 20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 3
JESD-609 Code e0
Published 2002
Packaging Bulk
Physical
Package / Case SSOP
Mount Surface Mount
