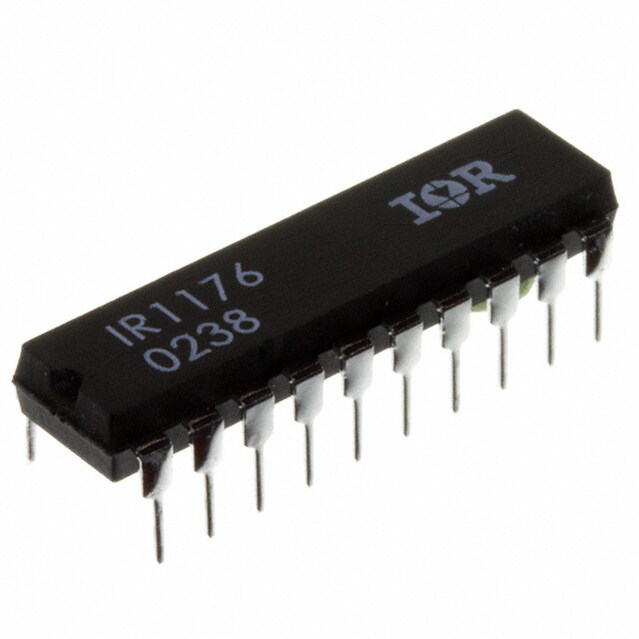

IR1176
RoHS
/
Package DIP
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
RoHS Compliant Tin/Lead (Sn/Pb) e0 Through Hole IC Gate Driver 5.33mm 5V 4A 85C
PDF
/
Buying Options
Total Price: USD $7.17
Unit Price: USD $7.17155
≥1 USD $7.17155
≥10 USD $5.88525
≥100 USD $5.70095
≥500 USD $5.51665
≥1000 USD $5.3333
Inventory: 1550
Minimum: 1
-
+
Technical Details
Technical
ECCN Code EAR99
Number of Terminations 20
JESD-609 Code e0
Published 2002
Packaging Bulk
High Side Driver YES
Output Peak Current Limit-Nom 4A
Interface IC Type BUFFER OR INVERTER BASED MOSFET DRIVER
Supply Voltage-Min (Vsup) 4V
Temperature Grade INDUSTRIAL
Qualification Status Not Qualified
Number of Outputs 2
Pin Count 20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology CMOS
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
Physical
Package / Case DIP
Mount Through Hole
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 5.33mm
