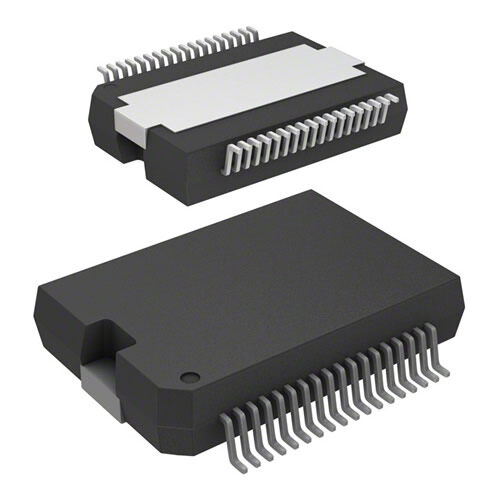

TLE6280GP
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
Tape & Reel BRUSHLESS DC MOTOR CONTROLLER DUAL Not Qualified gate driver 150C 28mA 20V 3.5mm
PDF
/
Buying Options
Total Price: USD $5.93
Unit Price: USD $5.9299
≥1 USD $5.9299
≥10 USD $4.8659
≥100 USD $4.7139
≥500 USD $4.5619
≥1000 USD $4.4099
Inventory: 7463
Minimum: 1
-
+
Technical Details
Physical
Surface Mount YES
Number of Pins 36
Technical
Packaging Tape & Reel
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
Number of Terminations 36
ECCN Code EAR99
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Subcategory Motion Control Electronics
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 14V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 36
Number of Outputs 1
Qualification Status Not Qualified
Operating Supply Voltage 20V
Supply Voltage-Min (Vsup) 8V
Analog IC - Other Type BRUSHLESS DC MOTOR CONTROLLER
Nominal Supply Current 28mA
Halogen Free Halogen Free
Dimensions
Height Seated (Max) 3.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
