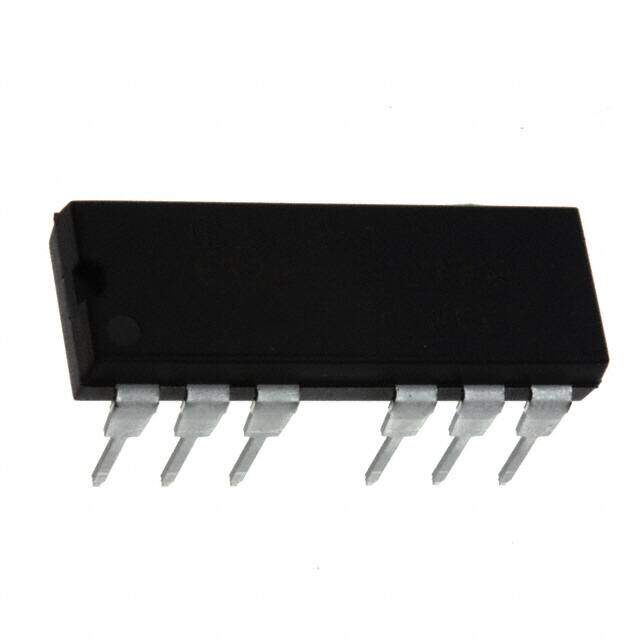

IR2113-1
RoHS
/
Package 14-DIP (0.300, 7.62mm), 13 Leads
Category Integrated Circuits (ICs) / PMIC - Gate Drivers
Description
IC GATE DRVR HALF-BRIDGE 14DIP
PDF
/
Buying Options
Total Price: USD $2.39
Unit Price: USD $2.3883
≥1 USD $2.3883
≥10 USD $1.95985
≥100 USD $1.8981
≥500 USD $1.8373
≥1000 USD $1.77555
Inventory: 14205
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
High Side Voltage - Max (Bootstrap) 600V
Logic Voltage - VIL, VIH 6V 9.5V
Current - Peak Output (Source, Sink) 2A 2A
Gate Type IGBT, N-Channel MOSFET
Driven Configuration Half-Bridge
Number of Drivers 2
Channel Type Independent
Rise / Fall Time (Typ) 25ns 17ns
Input Type Non-Inverting
Base Part Number IR2113-1
Voltage - Supply 3.3V~20V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2005
Packaging Tube
Operating Temperature -40°C~150°C TJ
Physical
Supplier Device Package 14-PDIP
Package / Case 14-DIP (0.300, 7.62mm), 13 Leads
Mounting Type Through Hole
