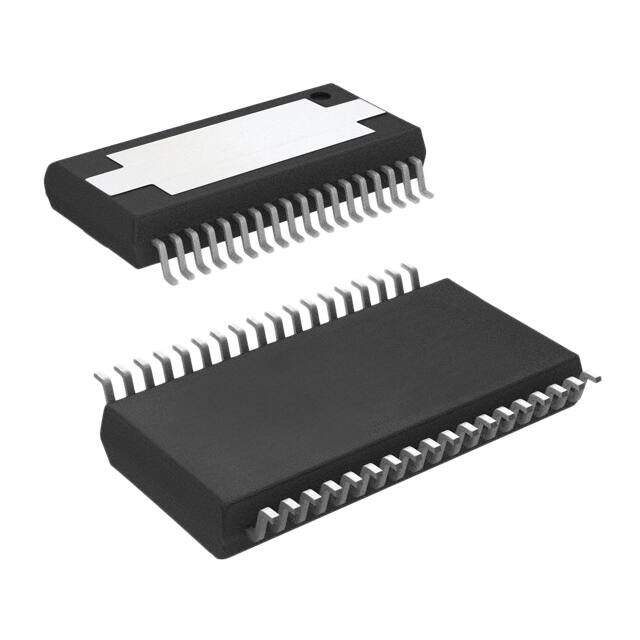

DRV8332DKDR
RoHS
RoHS compliant
RoHS compliantPackage 36-BSSOP (0.433, 11.00mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Full, Half-Bridge Drivers
Description
Current Limiting Over Temperature Short Circuit UVLO ACTIVE (Last Updated: 1day ago) Lead Free Tape & Reel (TR) bridge driver 8A 12V 80m Ohm LS 80m Ohm HS 3.6mm
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 3.5mm
Width 11mm
Length 15.9mm
Height 3.6mm
Technical
Load Type Inductive
Rds On (Typ) 80m Ω LS, 80m Ω HS
Fault Protection Current Limiting, Over Temperature, Short Circuit, UVLO
Voltage - Load 0V~52.5V
Output Current per Channel 8A
Output Current 8A
Output Configuration Half Bridge (3)
Nominal Supply Current 9mA
Analog IC - Other Type BRUSH DC MOTOR CONTROLLER
Interface PWM
Operating Supply Voltage 12V
Max Output Current 13A
Output Voltage 52.5V
Number of Outputs 1
Pin Count 36
Base Part Number DRV8332
Frequency 500kHz
Terminal Pitch 0.65mm
Supply Voltage 12V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 10.8V~13.2V
Technology Power MOSFET
Subcategory Motion Control Electronics
Applications DC Motors, General Purpose
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 36
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Pbfree Code yes
Feature Bootstrap Circuit, Status Flag
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 36
Package / Case 36-BSSOP (0.433, 11.00mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 6 Weeks
Alternative Model
