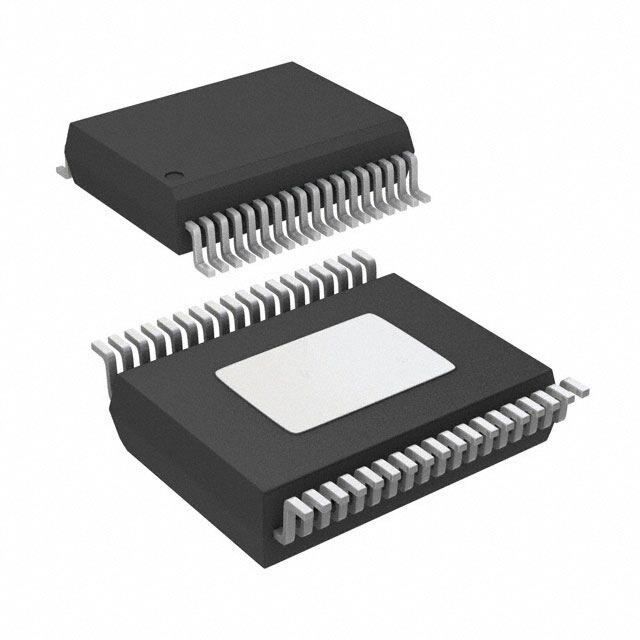

L9960T-TR
RoHS
RoHS compliant
RoHS compliantPackage 36-PowerFSOP (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / PMIC - Full, Half-Bridge Drivers
Description
Over Temperature Short Circuit ACTIVE (Last Updated: 6months ago) Tape & Reel (TR) L9960 bridge driver 4.5V~28V 400m Ohm LS + HS -40C~170C TJ
PDF
/
Buying Options
Total Price: USD $6.13
Unit Price: USD $6.126066
≥1 USD $6.126066
≥10 USD $5.397427
≥100 USD $4.952656
≥500 USD $4.579833
≥1000 USD $14.3925
Inventory: 1004
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 42 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Physical
Mounting Type Surface Mount
Package / Case 36-PowerFSOP (0.295, 7.50mm Width)
Technical
Operating Temperature -40°C~170°C TJ
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
Feature Slew Rate Controlled
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Applications General Purpose
Technology Power MOSFET
Voltage - Supply 4.5V~5.5V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number L9960
Interface SPI
Output Configuration Half Bridge (2)
Voltage - Load 4.5V~28V
Fault Protection Over Temperature, Short Circuit
Rds On (Typ) 400m Ω LS + HS
Load Type Inductive, Capacitive, Resistive
Compliance
RoHS Status ROHS3 Compliant
